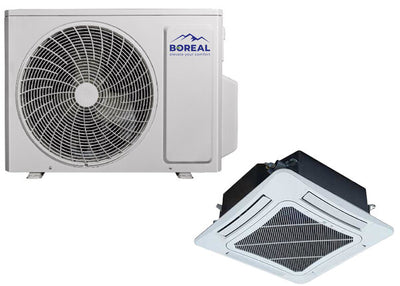

Boreal 24,000 BTU Single Zone Ceiling Cassette Ductless Mini Split System 208-230V

Availability:
In-Stock

Rated Capacity: 24,000 BTU Cooling
Product Includes
(1) Boreal - 24,000 BTU - Outdoor Condenser  (MBRS24HPJ1OE)
(1) Boreal 24,000 BTU  Ceiling Cassette Unit (BCAS24HPJ1CA)
Wireless Remote Control
Required, but NOT included: 1/4" x 3/8" (x1) Line sets
FREE SHIPPING

$3,192.00 USD

Title
Buy Now
SKU:
MBRS24HPJ1OE;BCAS24HPJ1CA
ID:
BRS100-0052; BRS100-0076

PRODUCT INFO

  • SEER: 21
  • Power Supply: 208-230V / 1Ph / 60Hz
  • Refrigerant Charge: R-410a
  • 5 Years Parts, 7 Years Compressor – Residential & Commercial

SPECIFICATIONS

General Information

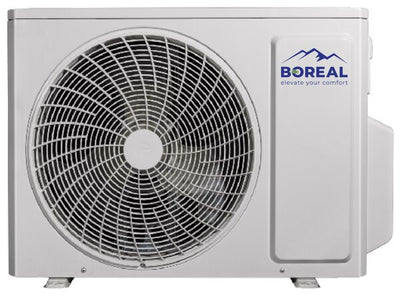

Outdoor Condenser
MBRS24HPJ1OE
System Type
HEAT PUMP
 Cooling Capacity - Nominal Btu/h 23200 (7500 - 31400)
Heating Capacity - Nominal Btu/h24000 (7500 - 31400)
SEER2 / EER221 / 12.5
HSPF2 / COP
10 / 3.9
Energy Star®
YES
Cooling Capacity (Min-Max) Btu/h23200 (7500 - 31400)
Heating Capacity (Min-Max) Btu/h
24000 (7500 - 31400)
SEER2 / EER216 / 11
HSPF2 / COP
8 / 3.4
Energy Star®
NO
Cooling Capacity (Min - Max) Btu/h
23200 (7500 - 31400)
Heating Capacity (Min - Max) Btu/h
24000 (7500 - 31400)
SEER2 / EER2
18.5 / 11.8
HSPF2 / COP
9 / 3.7
Energy Star®
YES
Cooling Temperature Range °F-22 - 118
Heating Temperature Range °F-22 - 75
Refrigerant TypeR410A
Compressor Type
G-10 / 2 - STAGE INVERTER
Sound Pressure Level dB(A)
58
External Dimensions (W x H x D)  in
38 × 26 × 15-7/8
Package Dimension (W x H x D) in
40-5/8 × 29 × 18
Weight (Net / Gross) lbs114.6/ 124.6
Refrigerant Charge - R410A oz
84.6
Additional Charge oz/ft
0.2
Port Size (Liquid - Gas Port A (in)
1/4 - 3/8
Port Size (Liquid - Gas Port B (in)
1/4 - 3/8
Port Size (Liquid - Gas Port C (in)
1/4 - 3/8
Port Size (Liquid - Gas Port D (in)

Port Size (Liquid - Gas Port E (in)

Pre-Charge Length ft98
Pipe Length (Min - Max) ft
10 - 197
Pipe Length to furthest Indoor Unit ft
66
Max. Pipe Elevation ft
49
Power Supply
208-230V / 1Ph / 60Hz
Voltage Range (Min - Max) VAC187 - 253
Rated Current - Cooling A
15
Rated Current - Heating A
15
MCA A19
MOCP A
25
Main Power Wire Size AWG
Per Local Code
Interconnecting Wire Size AWG
14 / 4
LIMITED WARRANTY
5 Years Parts, 7 Years Compressor – Residential & Commercial

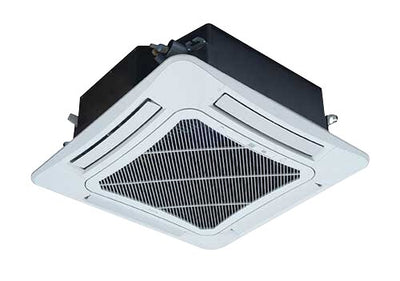

Ceiling Cassette
BCAS24HPJ1CA
System Type
HEAT PUMP
 Cooling Capacity - Nominal Btu/h22800
Heating Capacity - Nominal Btu/h27400
SEER2 / EER221 / 13.1
HSPF2 / COP
9.5 / 3.6
Energy Star®
YES
Air Flow (Min-Max) CFM
518 - 753
Sound Pressure Level (Min - Max) dB(A)
36 - 47
Dehumidification pt/hr
5.3
External Dimensions  (W x H x D) in
33 x 9-1/2 x 33
Package Dimension (W x H x D) in
37-1/2 x 12-1/8 x 37-1/2
Weight (Net/Gross) lbs
72.8  / 88.2
Line Set Sized by Indoor Unit (Liquid - Gas) in
3/8 - 5/8
Power Supply
208-230V / 1Ph /  60Hz (Powered by the Outdoor Unit)
LIMITED WARRANTY
5 Years Parts, 7 Years Compressor – Residential & Commercial
