Boreal BRISA 36,000 BTU 18 SEER Wall Mount Ductless Mini Split System 3 Tons 230V
Boreal BRISA 36,000 BTU 18 SEER wall-mounted ductless mini split system is a 3-ton, 230V single-zone system with matched outdoor and indoor components.
System highlights
- 36,000 BTU nominal cooling capacity
- 18 SEER
- 3 ton
- 230V
- Single-zone wall-mounted ductless system
- Wireless remote control included
Included equipment
- Outdoor condenser: BRS36HPJ1OA

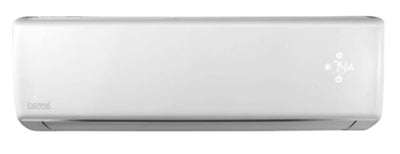

- Indoor wall unit: BRS36HPJ1IA
Required but not included: 1/4 in x 5/8 in line set.
Ordering note: Confirm voltage, line-set length, room/load sizing, model match, and installation requirements before purchase.
$2,579.00 USD
SKU:
BRS36HPJ1A
ID:
BRS100-0011
Categories:
PRODUCT INFO
- SEER / EER: 18 / 9.21
- HSPF / COP: 9 / 2.8
- Energy Star: No
- Cooling Temperature Range: -4 - 115
- Heating Temperature Range: -13 - 75
- Power Supply: 208-230V / 1Ph / 60Hz
- Refrigerant Charge: R410A (oz): 88.2
- Limited Warranty: 3/5 Years on parts/compressor
SPECIFICATIONS
| Capacity | 36,000 BTU | |
| Cooling Capacity | 5951 - 36000 | |
| Cycle Hertz | 60 Hz | |
| HSPF | 9 | |
| Inverter | Yes | |
| Item Weight | 203.0000 pounds | |
| Line Set Size For Bundle | 1/4" x 5/8" | |
| Minimum Circuit Amps | 24 | |
| Phase | Single | |
| Refrigerant | R-410A | |
| Room Size | 1,200 - 2,000 ft2 | |
| UPC | 816075025509 | |
| Zone Capability | 1 Zone | |
| Equipment Type | Heat Pump | |
| SEER | 18 | |
| EER | 9.21 | |
| Voltage | 208-230 VAC | |
| Energy Star Rated | No | |
| Heating Capacity | 8530 - 37020 | |
| Tonnage | 3 | |
| Product Family | Brisa | |
| Mounting Type | Wall |
