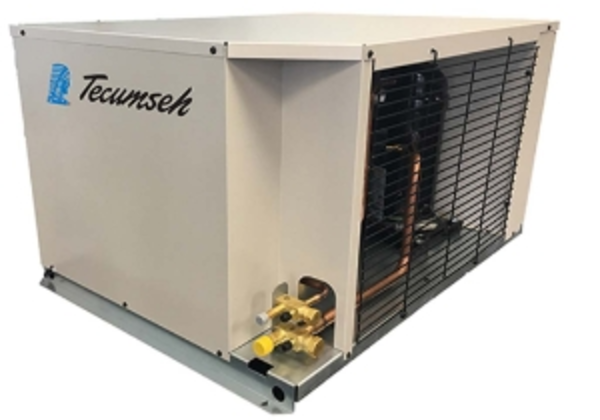

Tecumseh ARGUS ASHR2460ZFAFS1 ARGUS 1-1/2 HP low temp condensing unit (outdoor rated)
Tecumseh ARGUS ASHR2460ZFAFS1 ARGUS 1-1/2 HP low temp condensing unit (outdoor rated)
Availability:
In-Stock
PRODUCT FAMILY : Argus
APPLICATION : LBP
VOLTAGE : 208-230V 3PH 60Hz
UNIT TYPE : Outdoor
REFRIGERANT : R-404A, R-448A, R-449A, R-452A
BRAND VERSION : ARGUS - Small
COIL TYPE : Tube - Fin
FEATURE : Silver
Best-fit commercial refrigeration checks
Tecumseh ARGUS ASHR2460ZFAFS1 ARGUS 1-1/2 HP low temp condensing unit (outdoor rated) sits in the condenser and condensing unit side of a commercial refrigeration project. Buyers usually compare this category by medium-temp or low-temp application, BTU capacity, compressor type, refrigerant, voltage, phase, ambient conditions and matched evaporator or unit cooler.
- Good fit: the temperature class, voltage, phase and refrigerant match the refrigeration schedule.
- Great fit: capacity and compressor configuration are checked against the evaporator coil, unit cooler and box load.
- Perfect-fit check: verify the condensing unit with the selected evaporator, controls, line-set plan and installation requirements before ordering.
For the full project path, compare walk-in cooler and freezer boxes, evaporator coils and unit coolers, and commercial refrigeration condensing units.
Call 760-478-7759 or CONTACT US for pricing and to place an order.
SKU:
ASHR2460ZFAFS1
ID:
T100-0004
Categories:
SPECIFICATIONS
| Status | Active | |
| Cooling Type | Air Cooled Unit | |
| Length | 722 MM(28.4IN) | |
| Height | 471 MM(18.5IN) | |
| Width | 717 MM(28.2IN) | |
| Weight | 159LB(72KG) | |
| Discharge Line Size | 3/8 in (9.52mm) | |
| Suction Line Size | 5/8 in (15.9mm) | |
| Compressor Model | AWA2450ZFA | |
| LRA Start | 40.5 | |
| Air Flow | 700 CFM | |
| Design Pressure High | 450 | |
| Design Pressure Low | 181 | |
| Fan Motor RLA | 0.45 | |
| Minimum Circuit Ampacity | 8 | |
| Maximum Fuse Size | 15 |
| Maximum Ambient Temperature | 110 | |
| Maximum Evaporation Temperature | 10 | |
| Minimum Ambient Temperature | 90 | |
| Minimum Evaporation Temperature | -40 | |
| Pump Down Capacity | 9.5 Lb | |
| Condenser | Y | |
| Contactor | Y | |
| Crankcase Heater | Y | |
| Fan Motor | Y | |
| Fan Motor Qty | 1 | |
| High Pressure Switch | Y | |
| Low Pressure Switch | Y | |
| Pressure Control Low | Y | |
| Receiver | Y |
