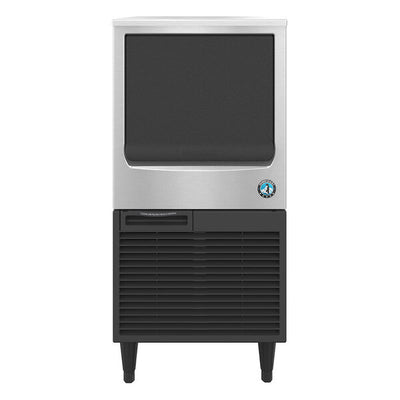

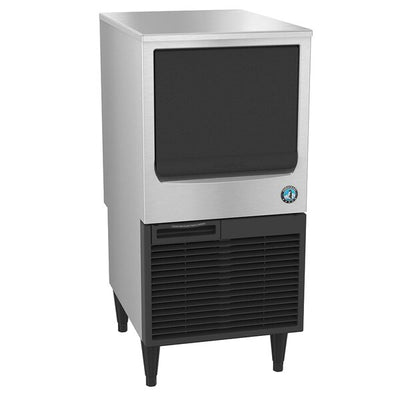

Hoshizaki KM-81BAJ 17 3/4" Crescent Cube, Undercounter Ice Machine, Air Cooled, 86 lbs/24h, 115v

  • Ice Machine With Bin
  • air-cooled
  • Self-contained condenser
  • Production capacity up to 86 lb/24 hours at 70°/50° (60 lb AHRI certified at 90°/70°), built-in 38 lb. ice storage capacity
  • Crescent style cube
  • Front opening bin
  • Stainless steel exterior
  • 115v/60/1-ph, 3.5 amps, ADA Compliant, NSF, cETLus, ENERGY STAR

$2,653.20 USD

Buy Now


The Hoshizaki KM-81BAJ undercounter crescent cube ice maker can produce 86 pounds of ice daily. It has a compact footprint and low profile to save space in crowded kitchens and service areas. A front-breathing airflow system enables this unit to be installed with reduced side and rear clearances, and the slide-in door doesn't obstruct the area in front of the machine when opened. Its EverCheck™ alert system simplifies routine maintenance and the air filter is removable from the front for servicing.

With 1.3 cubic feet of storage capacity, the Hoshizaki KM-81BAJ crescent cube commercial ice machine can keep 38 pounds of premade ice chilled and ready to serve, suiting it for many establishments. The included ice scoop features H-GUARD Plus antimicrobial agent, promoting sanitary machine operation and reducing cross-contamination. This ice maker is made of stainless steel, giving it excellent rust defense—an important feature for appliances regularly exposed to water.

Product Details:

  • Also known as KM-80BAJ
  • Air-cooled system
  • 86-lb. maximum daily ice production
  • 52-lb. AHRI-certified daily ice production
  • 1.3-cu-ft. storage bin holds 38 lbs. of premade ice
  • ADA compliant
  • Produces crescent ice
  • Cube dimensions: 11⁄8 in. W x 1⁄2 in. D x 11⁄2 in. H
  • Low-profile ice machine fits under counters or into small spaces
  • Forward-facing design enables built-in installation
  • Made of rust-resistant stainless steel
  • Antimicrobial ice scoop
  • Front-breathing airflow reduces side and rear clearance requirements
  • Front-opening bin with a slide-in door
  • EverCheck™ alert system
  • Power switch can be accessed without panel removal
  • 6-in. painted legs
  • Ideal ambient air temperature: 45-100 degrees F
  • Ideal incoming water temperature: 45-90 degrees F
  • Ideal incoming water pressure: 10-113 PSI
  • Ideal clearances: 0.6 in. at top; 12 in. at front
  • R-134a refrigerant
  • 1,350-BTU heat transfer capacity
  • cETLus listed; NSF and ENERGY STAR certified

Dimensions & Utilities:

  • Overall: 173⁄4 in. W x 24 in. D x 39 in. H
  • 3.5 A, 8.45 kW
  • 115 V/60 Hz/1 ph, 6.5-ft. power cord with NEMA 5-15P plug


Width17 3/4 Inches

Depth24 Inches

Height39 Inches

Amps 3.5 Amps

Hertz 60 Hertz

Phase1 Phase

Voltage115 Volts

24 Hour Ice Yield 86 Pounds

ADA Compliant Yes

Bin Storage Capacity 38 lb.

Condenser Type Air Cooled

Energy Star Qualified Yes

Ice Type Crescent Cubes

Installation Type Undercounter

NSF Listed Yes

Power Usage 7.95 kWh per 100 lbs.

Type Ice Machines

Water Usage 18.2 Gallons per 100 lbs.
