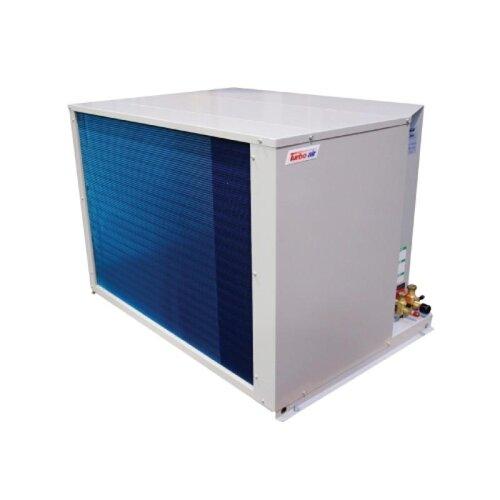

Turbo Air TD075XR404A3 7.5 HP Low Temp Condensing Unit
Turbo Air TD075XR404A3 7.5 HP Low Temp Condensing Unit
Availability:
In-Stock
- 31768 BTU@-20F SST
- 208-230V/60Hz/3Ph
- 7.5 HP
- R404a,R448a,R449a
- Highest quality compressor in the world Copeland®
Call 760-478-7759 or CONTACT US for pricing and to place an order.
SKU:
TD075XR404A3
ID:
R200-1073
PRODUCT INFO
Features:
- Blue anti-corrosion fin increases the life span of the coil.
- Seamless inner groove copper tube is used to increase the heat exchange rate by reducing the space between the fin and the copper tube.
- Highest quality compressor in the world.
- Condenser Fan ON/OFF switch controls a condenser fan to keep condensing pressure constant in low ambient for stable operation, minimize formation of flash gas, and prevent compressor damage by controlling high pressure.
- Experienced engineers have designed the system for maximum efficiency.
- Fan blades: Specifically matched with motors and coil for maximum air movement and cooling.
- Control box is designed for easy installation.
- Dual pressure control (Low and High) is adjustable.
- All the parts are compliant with industry standards and interchangeable with readily available parts.
- Wiring: Easily accessible. Compressor comes with a wiring harness that is manufactured with connections that will not come loose with vibration.
- Control box and service valves are located outside for easy service.
- Base: Heavy duty steel. Legs are 2-1/6” tall.
- Cabinet: Prepainted with galvanized body. Protects against corrosion.
- All products carry UL, cUL, ISO 9001 approvals.
- 1 year parts and 1 year compressor warranty on condensing units and unit coolers.
- 4 year extended warranty available for compressor: total 5 years
Dimensions:
- W: 38.1 inch
- D: 50.3 inch
- H: 38.4 inch
SPECIFICATIONS
| General Information | |
| Capacity BTU (-20°F SST) | 31768 |
| Fan CFM | 3849 |
| Fan quantity | 1 |
| HP | 7.5 |
| Compressor Copeland® | 3DB3F33KE |
| Compressor Amp | 27.6(RLA),161(LRA) |
| MCA/MOPD | 36.9/60 |
| Line Set connections size Inlet | 5/8 OD |
| Line Set connections size Suction | 1-1/4 OD |
| Approx. Net Wt. Lbs | 813 |
| Refrigerant Type | R448a/R449a,R404a |
