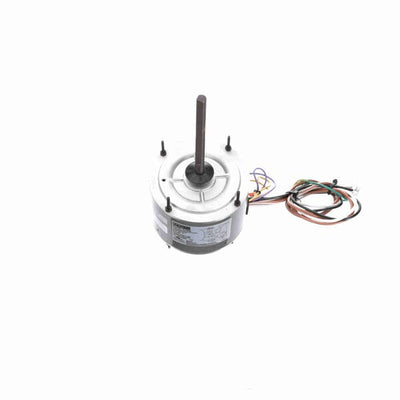

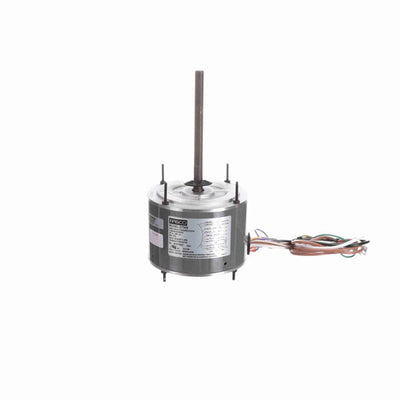

Fasco Condenser Fan Motor, 1075 RPM, 1/4 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
Fasco D7909 condenser fan motor is a 48-frame PSC motor for 208-230V condenser fan applications.
Product highlights
- 1/4 HP
- 1075 RPM
- 208-230V
- 48 frame / 5.6 in diameter
- Permanent split capacitor motor
- Requires 5 MFD, 370V capacitor; capacitor not included
- Totally enclosed air-over construction
- Thermally protected
- Ball bearing
- 1/2 in shaft with double flat
- 27 in leads
Ordering details
- Brand: Fasco
- Model / SKU: D7909
- Product type: Condenser Fan Motor
Fit note: Match horsepower, voltage, RPM, frame, shaft, mounting, rotation, capacitor, and equipment requirements before replacement.
$153.00 USD
PRODUCT INFO
Applications
For use on central air conditioning systems and outdoor condensing units
Features
Automatic thermal protection. All-angle mount. Extended tie rods both ends. Flat end bells both ends
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508020280 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 1.8 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 3.98 in |
| Shaft Extension | 6.5 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Shaft Diameter | 0.500 in |
