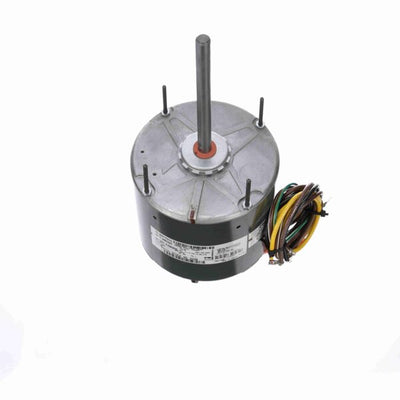

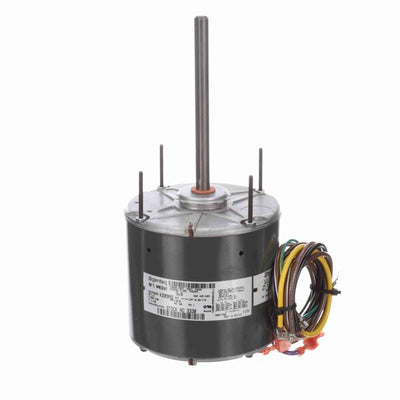

Genteq Condenser Fan Motor, 1075 RPM, 1/2 HP, 208-230 V, 48 Frame, Open Air Over

Availability:
Out-Stock
  • Condenser Fan - Heat Pump Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Semi-Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 26" Leads
  • Shaft Up/Horizontal, Extended Pulley End Clampbolts, Belly Band

$155.00 USD

Sold Out

SKU:
3330
ID:
HM101-0103

PRODUCT INFO

Applications
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with belly band or extended clamp screw mounting

Features
Automatic thermal protection. For shaft up application. Standard efficiency

SPECIFICATIONS

Nameplate Specifications
UPC815585021711
Output HP1/2 Hp
Frequency60 Hz
Current3.60 A
Service Factor1
DutyContinuous Air Over
Frame48
Thermal ProtectionThermally Protected
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature60 °C
CSAY


Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingRound
Opp Drive End BearingSleeve
Shaft TypeDouble Flat
Frame Length4.32 in
Shaft Extension6.00 in
RotationReversible
Frame MaterialRolled Steel
Overall Length11.88 in
Shaft Diameter0.500 in
