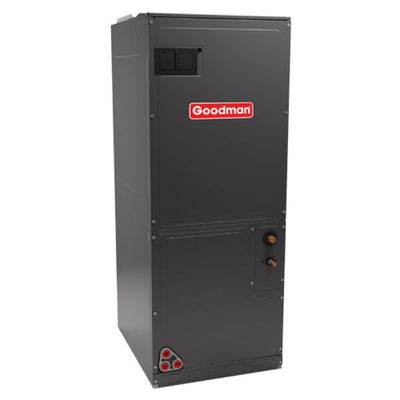

Goodman 3 Ton Air Handler Multi-Position, W/Variable-Speed ECM Motor

Availability:
Out-Stock
Nom. Tons: 2.5-3.5; Volts: 208/240; Nom. CFM: 1,375; CFM @ 0.5" ESP: 1,365; CFM High @ 0.3 ESP: 1,405; Min. Circuit Amps: 6.5; Max. Fuse Size: 15; Liquid Conn.: 3/8"; Suction Fitting: 7/8"; Width: 24-1/2"; Height: 53-7/16"; Depth: 21"; Wt. Lbs.: 112; Motor Type: ECM; Air Handler Type: Single Piece; Configuration: Multi-Position

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

Product Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ Technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • All-aluminum evaporator coil
  • AHRI certified; ETL listed
  • Rigid SmartFrame™ cabinet
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access
  • Field Installed 3 kW – 25 kW electric heater kits available

SPECIFICATIONS

Nominal Ratings
Cooling (BTU/h)36,000
CFM (High range)1375/865



Blower
Diameter10 5/8"
Width10 5/8"
Coil Drain Connection FPT3/4"



Service Valve
Liquid 3/8"
Suction7/8"



Blower Motor
Full Load Amps (FLA)5.2
Horsepower (HP)3/4



Ship Weight (lbs)155
