Goodman 2.5 Ton 15 SEER Heat Pump Variable Speed Split System (Heat/Cool)

Availability:
Out-Stock

Product Includes 2 items:
(1) Goodman 2.5 Ton 14 SEER Heat Pump Air Conditioner Condenser (GSZ140301)
(1) Goodman 2.5 to 3.5 Ton Air Conditioner Air Handler Smart Frame Cabinet (AVPTC37C14)

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

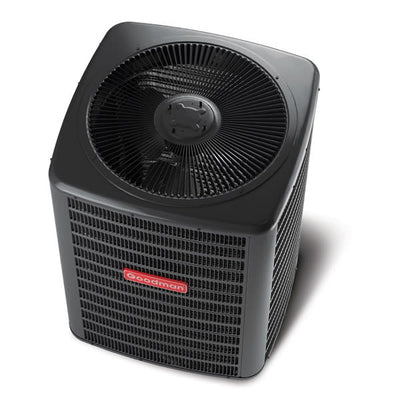

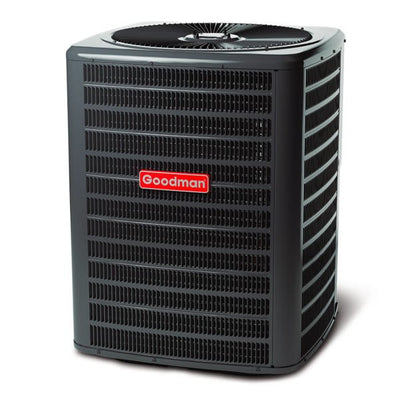

The Goodman GSZ14 GSZ140301 Heat Pump Air Conditioner Condenser

  • Quiet Condenser Fan Motor - High-efficiency, single-speed motor with special three blade fan design provides dependable, quiet airflow across condensing coil.
  • Efficient Cooling Capacity - Refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A refrigerant.
  • Quiet Operation - An acoustically engineered top on the unit helps reduce noise levels compared to units without sound control enhancements.
  • Factory-Installed Bi-flow Liquid Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
  • Factory-Installed Heater Band and Suction Line Accumulator - Ensures refrigerant is ready even in extreme external temperatures for smooth and energy-efficient performance.

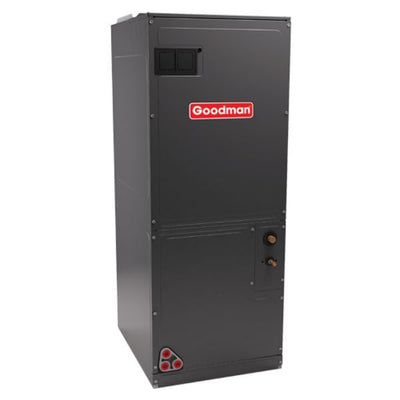

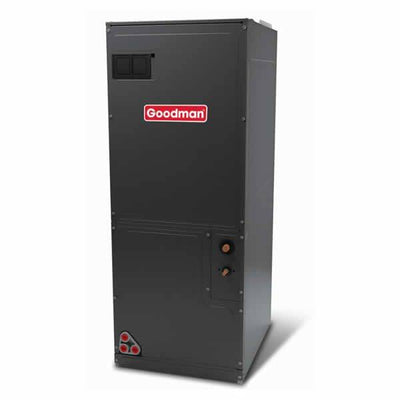

Goodman AVPTC37C14 Air Conditioner Air Handler

  • All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.
  • Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
  • Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.

The Goodman AVPTC37C14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate and the cabinet is fully painted in an Architectural Gray finish. The Goodman AVPTC37C14 Air Conditioner Air Handler feature a direct-drive, multi-speed ECM blower motor. Also the Goodman AVPTC37C14 Air Conditioner Air Handler reduces the likelihood of hot and cold spots in the house and provides increased efficiency over standard efficiency motors. All functional parts are covered by a 10-Year Parts Limited Warranty.

SPECIFICATIONS

General Information
Operating ModeHeating and Cooling
ConfigurationMulti-Position


Performance
Capacity2.5 Tons
Cooling Capacity27800 BTU
Nominal Cooling Capacity30000 BTU
SEER15.0
EER12.5
HSPF8.5
Maximum Air Flow930 CFM


Dimensions
Product Weight300 Pounds
Shipping Weight316 Pounds


Certifications
ETL ListedYes
AHRI CertifiedYes
AHRI Reference Number8996184
