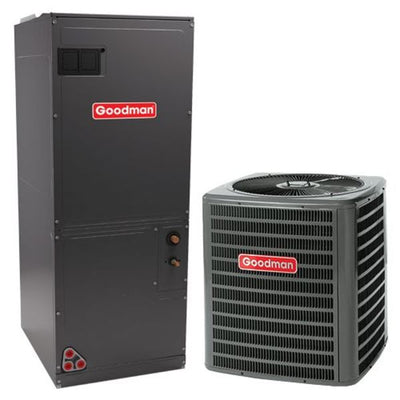

Goodman 3.5 Ton 14 SEER Air Conditioner Variable Speed Split System (Cooling only)


Product Includes 2 items:
(1) Goodman 3.5 Ton 13 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX130421);
(1) Goodman 4 to 5 Ton Air Conditioner Air Handler Smart Frame Cabinet (AVPTC59D14)


For pricing and to purchase this product:

Please register, login, or contact us for a quote request

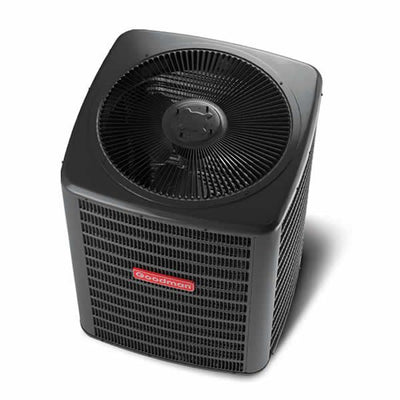

Goodman GSX130421 Air Conditioner Condenser
Goodman brand air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSX130421 air conditioner condensers ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand cooling systems are designed, engineered and assembled in the United States.
Energy-Efficient Scroll Compressor- Inside of the Goodman GSX130421 air conditioner condensers you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.
Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX130421 air conditioner condenser simply work the way they're supposed to, making each one a thing of beauty.
Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

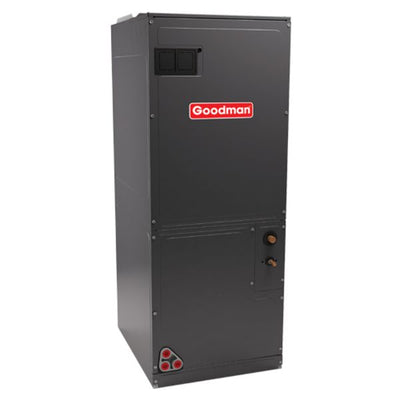

AVPTC59D14 Air Conditioner Air Handler

The Goodman AVPTC59D14 Air Conditioner Air Handler design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. These Goodman AVPTC59D14 Air Conditioner air handler is ideal for either new or retrofit installations.
All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.
Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.


General Information
Operating ModeCooling
Compressor StagesSingle
DOE Regional Compliance North
Installation AvailableYes


Capacity3.5 Tons
Cooling Capacity40500 BTU
Nominal Cooling Capacity42000 BTU
EER 12.0
Maximum Air Flow1365 CFM


Product Weight326 Pounds
Shipping Weight (total)344 Pounds


ETL ListedYes
AHRI CertifiedYes
AHRI Reference Number8996121
Country of OriginUnited States
