Goodman 5 Ton 14 SEER Air Conditioner Variable Speed Split System (Cooling only)


Product Includes 2 items:

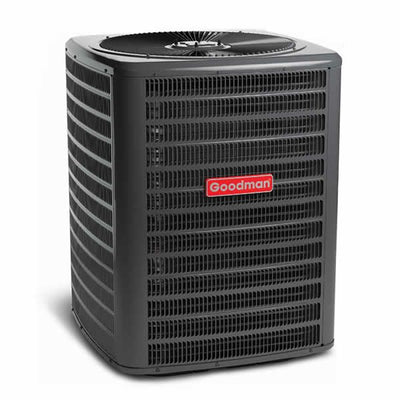

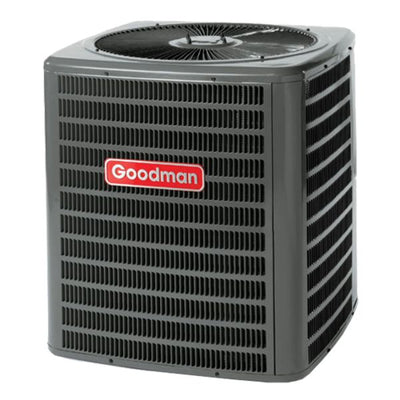

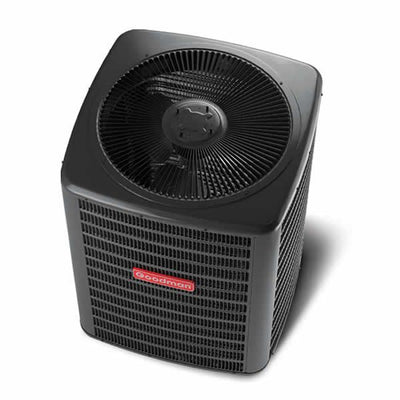

(1) Goodman 5 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140601);

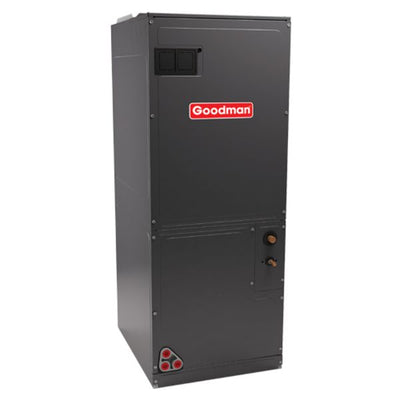

1) Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet (AVPTC61D14)


For pricing and to purchase this product:

Please register, login, or contact us for a quote request


A Goodman high efficiency central air kit is the perfect way to upgrade your home's HVAC system. This kit contains a GSX14 air conditioner and an AVPTC air handler. While each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, their energy efficiency is the real selling point. The high-efficiency 1-stage compressor helps to deliver an outstanding 14 SEER and will reduce temperature swings in your home. State-of-the-art design and technology make the GSX1460AVPTC an excellent addition to nearly any household looking to reduce their energy spending.

Energy-Efficient Circulation
PSC blower motors are energy hogs. The ECM motor in the AVPTC provides more efficient, more intelligent airflow for your home.

Filter Drier
A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.

Quiet Comfort
Goodman takes great pride in providing comfort that doesn't disrupt your home. The wire fan discharge grille and condenser fan motor of the GSX14 were designed to reduce noise levels without compromising performance.

The included ComfortAlert compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the air conditioner.

ComfortBridge Compatible
This air conditioner is compatible with Goodman's ComfortBridge communicating controls. ComfortBridge shortens the installation and maintenance processes. It automatically detects your equipment and then provides diagnostics while troubleshooting.

Energy-Efficient Circulation
By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal airflow through shifting conditions in nearly any application.

Internal Thermostatic Expansion Valve
The AVPTC has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.

Smart Frame
This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.

Condensate Management
The AVPTC's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.


General Information
Operating ModeCooling
DOE Regional Compliance Nationwide
Installation AvailableYes

Capacity5.0 Tons
Cooling Capacity57000 BTU
Nominal Cooling Capacity60000 BTU
EER 12.0
Maximum Air Flow1775 CFM


Product Weight427 Pounds
Shipping Weight (total)447 Pounds


ETL ListedYes
AHRI CertifiedYes
AHRI Reference Number8996151
Country of OriginUnited States
