Goodman 3.5 Ton Air Handler Multi-Position, W/PSC Motor >

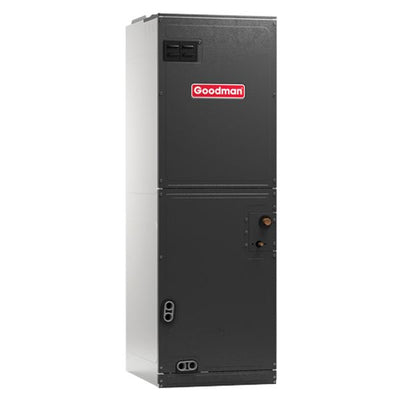

Goodman 3.5 Ton Air Handler Multi-Position, W/PSC Motor << Shipping in 48 States >>
Availability:
Out-Stock
Nom. Tons: 3.5; Volts: 208/230; Nom. CFM: 1,375; CFM @ 0.5" ESP: 1,375; CFM High @ 0.3 ESP: 1,515; Min. Circuit Amps: 4; Max. Fuse Size: 15; Liquid Conn.: 3/8"; Suction Fitting: 7/8"; Width: 21"; Height: 53"; Depth: 21"; Wt. Lbs.: 130; Motor Type: PSC; Air Handler Type: Single Piece; Configuration: Multi-Position
$689.00 USD
SKU:
ARUF43C14
ID:
HE180-1008
PRODUCT INFO
Product Features
- Check flowrator for cooling and heat pump applications
- Direct drive, multi-speed PSC blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
- AHRI certified; ETL listed
- Rigid SmartFrame™ cabinet
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
- Field Installed 3 kW – 25 kW electric heater kits available
