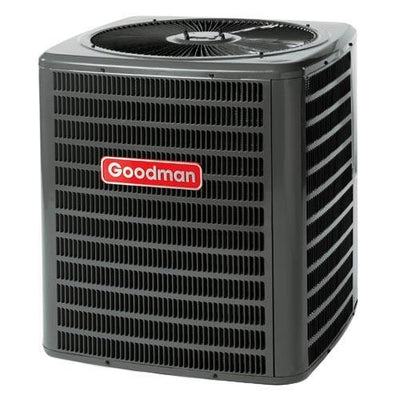

Goodman 3.5 Ton Heat Pump Condenser; 16 SEER; Single-Stage; W/R410A Refrigerant
SEER: 16; EER: 13.0; Nom. Tons: 3.5; BtuH Cooling: 42,000; BtuH Heating Input: 42,000; Volts: 208/230; Phase: Single; Motor Type: ECM; HSPF: 9.0; COP: 4.51; Min. Circuit Amps: 22.4; Max. Fuse Size: 35; Liquid Conn.: 3/8"; Suction Fitting: 1-1/8" *; Refrigerant: R410A; Width: 29"; Height: 36-3/8"; Depth: 29"; Wt. Lbs.: 226;
SKU:
GSZ160421
ID:
HE102-2006
PRODUCT INFO
Standard Features
- High-efficiency scroll compressor
- SmartShift® technology to ensure quiet reliable defrost
- Single-speed PSC condenser fan motor
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Copper tube/enhanced aluminum fin coil
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
Cabinet Features
- Goodman® brand sound control top design
- Steel louver coil guard • Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Service ports and controls are accessible while unit is operating
- When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
SPECIFICATIONS
| Nominal Capacities | |
| Cooling (BTU/h) | 42,000 |
| Heating (BTU/h) | 42,000 |
| Decibels | 73 |
| Compressor | |
| RLA | 16.7 |
| LRA | 109.0 |
| Type | Scroll |
| Condenser Fan Motor | |
| Horsepower | 1/4 |
| FLA | 1.2 |
| Refrigeration System | |
| Refrigerant Line Size | |
| Liquid Line Size (O.D.) | 3/8" |
| Suction Line Size (O.D.) | 1-1/8" |
| Refrigerant Connection Size | |
| Liquid Valve Size (O.D.) | 3/8" |
| Suction Valve Size (O.D.) | 7/8" |
| Valve Type | Sweat |
| Refrigerant Charge | 180 |
| Ship Weight (lbs) | 237 |
