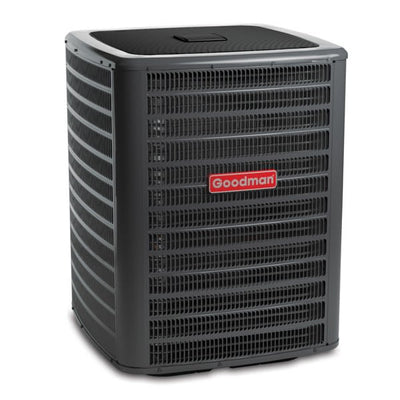

Goodman 3 Ton Heat Pump Condenser; 18 SEER; Two-Stage; W/R410A Refrigerant

Availability:
Out-Stock
SEER: 18; EER: 14.0; Nom. Tons: 3; BtuH Cooling: 34,800; BtuH Heating Input: 35,000; Volts: 208/230; Phase: Single; Motor Type: ECM; HSPF: 10.00; COP: 4.65; Min. Circuit Amps: 21.3; Max. Fuse Size: 35; Liquid Conn.: 3/8"; Suction Fitting: 7/8"; Refrigerant: R410A; Width: 35-1/2"; Height: 34-5/8"; Depth: 35-1/2"; Wt. Lbs.: 260

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

Standard Features

  • High-efficiency two-stage scroll compressor
  • High-density foam compressor sound blanket
  • Integrated communicating ComfortBridge™ Technology
  • Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
  • Expanded ComfortAlert diagnostics built in
  • Set-up capable with two low-voltage wires to outdoor unit
  • Diagnostic indicator lights and storage of six fault codes
  • Color-coded terminal strip for non-communicating set-up
  • SmartShift® technology with short-cycle protection to ensure quiet, reliable defrost
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed transformer
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Factory-installed coil and ambient temperature sensors
  • High- and low-pressure switches
  • Quiet ECM-style condenser fan motor
  • AHRI Certified; ETL Listed

Cabinet Features

  • Goodman® brand sound control top design
  • Heavy-gauge galvanized-steel cabinet
  • Appliance-quality powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Baked-on powder paint finish
  • Top and side maintenance access
  • When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

SPECIFICATIONS

Capacities
Nominal Cooling (BTU/h)34,800
Heating (BTU/h)35,000
Decibels72



Compressor
RLA14.8
LRA84.22



Condenser Fan Motor
Horsepower (RPM)1/3
FLA2.8



Refrigeration System
Refrigerant Line Size
   Liquid Line Size (O.D.)3/8"
   Suction Line Size (O.D.)7/8"
Refrigerant Connection Size
   Liquid Valve Size (O.D.)3/8"
   Suction Valve Size (O.D.)7/8"
Valve TypeSweat
Refrigerant Charge219
Expansion DeviceTXV
Superheat at Service Valve7-9°F
Subcooling at Service Valve
    High Stage8-10°F
    Low Stage 5-7°F



Ship Weight (lbs)280
