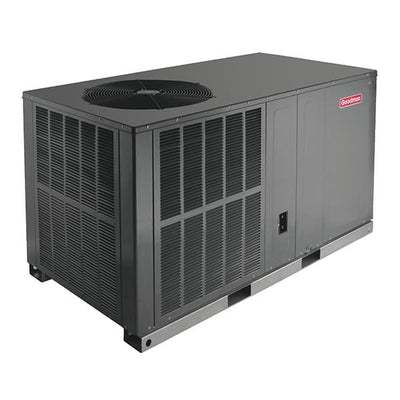

Goodman 3 Ton 14 SEER Horizontal Packaged Heat Pump System
PRODUCT INFO
The GPH14H combines a Goodman heat pump, evaporator coil, and blower to provide efficient heating and cooling from a single unit. A scroll compressor provides consistent refrigerant flow, and Goodman's superior coil design is featured to ensure high efficiency regardless of whether you're heating or cooling your home. The GPH1436H41 even features convenient access panels that make installation and maintenance a breeze. Streamline your comfort today with this Goodman packaged unit.
High-Efficiency Coils
The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer
Secure Design
The cabinet of the GPH1436H41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.
Filter Drier
A biflow filter drier is installed in the liquid line of this packaged unit's heat pump. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the heat pump.
Quiet Comfort
A sound insulated blower compartment means that the GPH1436H41 provides year-round comfort without disrupting your home.
Scroll Compressor
This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
EEM Blower
PSC blower motors are energy hogs. The EEM motor in the GPH1436H41 consumes less electricity, ensuring energy-efficient circulation.
Compressor Protection
Goodman installed a suction accumulator that collects excess liquid refrigerant in their GPG15 packaged units. This prevents refrigerant from flooding and damaging the compressor during operation.
Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.
SPECIFICATIONS
General Information | |
Type | Heat Pump Packaged Unit |
Operating Mode | Heating and Cooling |
Refrigerant Type | R-410A |
Blower Motor | Multi-Speed |
Motor Type | EEM |
Configuration | Horizontal |
Installation Location | Outdoor |
Compressor Stages | Single |
DOE Regional Compliance | Nationwide |
Installation Available | Yes |
UPC | 663051524972 |
Performance | |
Capacity | 3.0 Tons |
Cooling Capacity | 36000 BTU |
Heating Capacity | 36000 BTU |
SEER | 14.0 |
EER | 11.5 |
Maximum Air Flow | 1577 CFM |
Minimum Air Flow | 1151 CFM |
Maximum Sound Level | 78 dB |
Dimensions | |
Product Height | 35 Inches |
Product Width | 34 Inches |
Product Depth | 66 1/4 Inches |
Product Weight | 375 Pounds |
Shipping Weight | 387 Pounds |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
ISO Certified | Yes |
