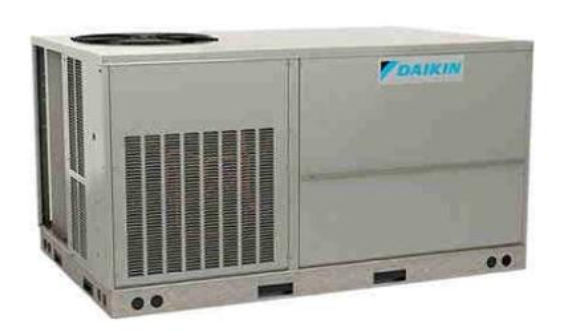

Daikin Single Packaged Heat Pump, 16.7 IEER, 11.3 EER, 3 Phase, 208/230V, R-32, DSH0723W000001F
Product Overview
The DSH0723W000001F is a 6-ton light commercial packaged heat pump rooftop unit engineered to provide both electric heating and cooling in a single self-contained system. Designed for small to mid-size commercial applications, it delivers dependable year-round comfort for spaces such as retail stores, offices, restaurants, schools, and other light commercial buildings.
Built for performance and reliability, this model uses a high-efficiency scroll compressor system paired with a high-static ECM indoor blower motor, allowing it to maintain strong, consistent airflow even in duct systems with higher resistance or longer runs. Its factory-assembled, charged, and tested design helps reduce installation time, minimize field labor, and improve overall system reliability.
The unit is intended for rooftop or curb-mounted installation and features a heavy-duty, weather-resistant cabinet designed to withstand demanding outdoor environments. With convertible airflow configurations (horizontal or downflow), it supports flexible installation for both new construction and retrofit applications.
Quick Facts
- System Type: Packaged Rooftop Heat Pump (Heating & Cooling)
- Cooling Capacity: ~6 tons (≈68,000 BTU nominal)
- Heating Capacity: ~67,000 BTU equivalent output (electric heat pump operation)
- Refrigerant: R-32 / R-410A platform dependent (revision-specific)
- Power Supply: 208/230V, 3-phase, 60 Hz
- Compressor Type: High-efficiency scroll compressor (two-stage operation)
- Fan System: Direct-drive ECM indoor blower motor (high-static capable)
- Airflow: ~2,300–2,400 CFM nominal range
- Efficiency: ~16–17 SEER / IEER (configuration dependent)
- Installation: Rooftop or curb-mounted (new construction or retrofit)
- Cabinet: Heavy-duty galvanized steel, weather-resistant construction
- Application: Small to mid-size commercial buildings
- Design Focus: High-static duct capability, energy efficiency, and simplified rooftop installation
$6,559.32 USD
SKU:
DSH0723W000001F
ID:
HE101-2309
PRODUCT INFO
Standard Features
- Packaged rooftop heat pump system (all-in-one heating & cooling)
- Factory-assembled, charged, and tested for simplified installation and faster startup
- High-efficiency scroll compressor system for reliable, quiet operation
- Two-stage cooling operation for improved comfort control (platform dependent)
- Factory-wired controls with organized, weather-protected control box
- High-static ECM indoor blower motor for long duct runs and higher static pressure applications
- Built-in TXV (thermal expansion valve) for precise refrigerant control
- Standard air filtration section for improved indoor air quality
- Convertible airflow: horizontal or downflow configuration
- Designed for rooftop or curb-mounted installation
- Multiple factory-installed safety controls (high/low pressure protection, motor protection)
- Fully factory-tested electrical system for reduced commissioning time
Cabinet Features
- Heavy-duty galvanized steel cabinet construction for long-term durability
- Powder-coated finish for improved corrosion and weather resistance
- Designed for outdoor rooftop exposure and harsh environments
- Removable access panels for easier service and maintenance
- Weather-resistant sealed cabinet design to protect internal components
- Compact rooftop footprint optimized for curb or rooftop mounting systems
- Microchannel or high-efficiency outdoor coil design (platform dependent)
- Reinforced structure for shipping and lifting durability (forklift/crane handling)
SPECIFICATIONS
| AHRI Number | 215415683 |
|---|---|
| BtuH Cooling | 72,000 |
| BtuH Heating Output | 67,000 |
| COP | 2.25 |
| Configuration | Downflow/Horizontal |
| Depth | 48-5/16" |
| EER2 | 11 |
| HSPF2 | 3.4 |
| Height | 43-1/2" |
| Max. Fuse Size | 45 |
| Min. Circuit Amps | 30.6 |
| Motor Type | Direct Drive - High Static |
| Nom. CFM | 2,380 |
| Nom. Tons | 6 |
| Phase | Three |
| Refrigerant | R-32 |
| SEER2 | 16.5 |
| Volts | 208/230 |
| Width | 74" |
| Wt. Lbs. | 649 |
