Goodman 4 Ton 17.5 SEER Air Conditioner Variable Speed Split System (Cooling only)


Product Includes 2 items:

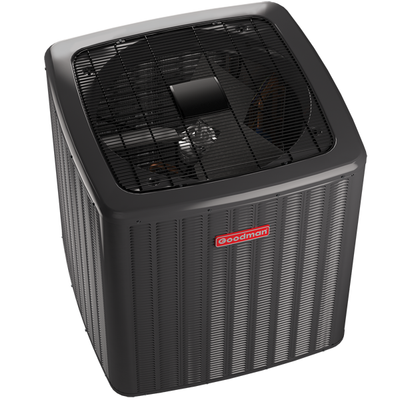

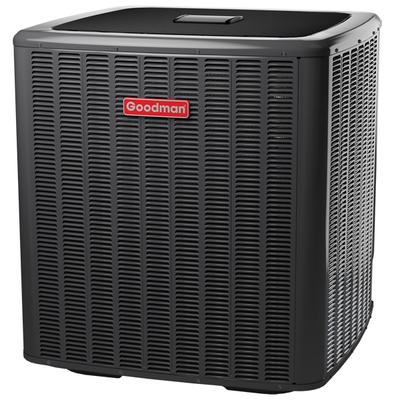

(1) Goodman 4 Ton 18 SEER Air Conditioner Condenser 2 Stage Communicating (GSXC180481);

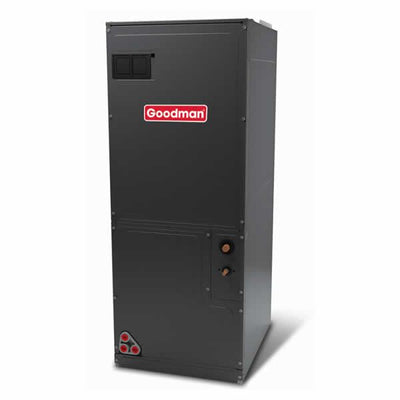

(1) Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet (AVPTC61D14)


For pricing and to purchase this product:

Please register, login, or contact us for a quote request


A Goodman high efficiency central air kit is the perfect way to upgrade your home's HVAC system. This kit contains a GSXC18 air conditioner and an AVPTC air handler. While each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, their energy efficiency is the real selling point. The high-efficiency 2-stage compressor helps to deliver an outstanding 18 SEER and will reduce temperature swings in your home. State-of-the-art design and technology makes this kit an excellent addition to nearly any household looking to reduce their energy spending.

Energy-Efficient Circulation
PSC blower motors are energy hogs. The ECM motor in the AVPTC provides more efficient, more intelligent airflow for your home.

UltraTech Compressor
A two-stage Copeland UltraTech scroll compressor provides the GSXC18 with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.

Filter Drier
A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.

The included ComfortAlert compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the air conditioner.

ComfortBridge Compatible
This air conditioner is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control streamlines the installation and maintenance processes further by automatically detecting your equipment and providing diagnostics.

Internal Thermostatic Expansion Valve
The AVPTC has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.

This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.

Condensate Management
The AVPTC's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.

Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.


General Information
Operating ModeCooling
Compressor StagesTwo
DOE Regional Compliance Nationwide
Installation AvailableYes


Capacity4.0 Tons
Cooling Capacity47000 BTU
Nominal Cooling Capacity48000 BTU
EER 13.0
Maximum Air Flow1720 CFM


Product Weight434 Pounds
Shipping Weight (total)465 Pounds


ETL ListedYes
AHRI CertifiedYes
AHRI Reference Number10332489
Country of OriginUnited States
