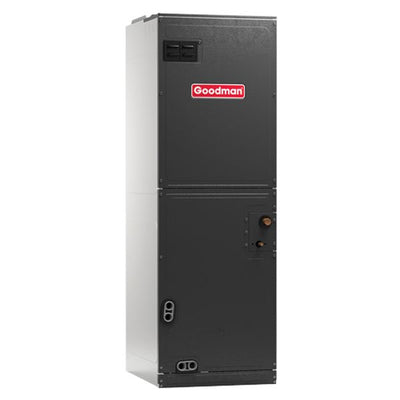

Goodman 4 Ton Air Handler Multi-Position, W/ECM Based Motor

Availability:
Out-Stock
Nom. Tons: 4; Volts: 208/230; Nom. CFM: 2,210; CFM @ 0.5" ESP: 2,040; CFM High @ 0.3 ESP: 2,120; Min. Circuit Amps: 8.6; Max. Fuse Size: 15; Liquid Conn.: 3/8"; Suction Fitting: 7/8"; Width: 24-1/2"; Height: 58"; Depth: 21"; Wt. Lbs.: 112; Motor Type: EEM; Air Handler Type: Single Piece; Configuration: Multi-Position

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

Product Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, multi-speed ECM blower motor
  • All-aluminum evaporator coil
  • Coil mounting track for quick repositioning
  • Optimized for use with R-410A refrigerant
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • AHRI certified; ETL listed
  • Rigid SmartFrame™ cabinet
  • Horizontal or vertical configuration capabilities
  • 21” depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access
  • Field Installed 3 kW – 25 kW electric heater kits available

SPECIFICATIONS

Nominal Ratings
Cooling (BTU/h)48,000



Blower
Diameter11-15/16"
Width10-5/8"



Coil Connections
Liquid 3/8"
Suction7/8"
Coil Drain Connect (FPT)3/4"



Blower Motor
Full Load Amps (FLA)6.9
Horsepower (HP)1



Ship Weight (lbs)167
