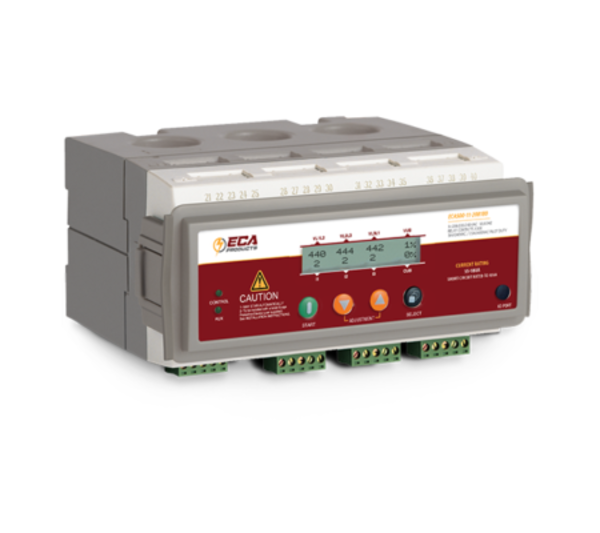

ICM ECA100-11-208012 Series Line Voltage Monitoring,Three Phase Voltage Monitors
Replaces: SymCom/MotorSaver: 777 Series, 520CS-115, 520CP: Schneider Square: Motor Logic Plus 9065: Schneider Square: Motor Logic Plus 9065: Telemecanique: LT6: NASSAR: PM-31: CAC: EOCR-3DM: Time Mark: 2742;
$220.85 USD
SKU:
ECA100-11-208012
ID:
PH501-2S9-3238
Categories:
PRODUCT INFO
CM Controls ECA100-11-208012 Motor Protection Relay 208/220VAC 3.5-12A
ECA100-11 is a series of micro-controlled 3-phase motor protection current, voltage monitoring relays.
Designed to protect electrical motors from failure and damage due to common current and voltage faults.
The ECA100-11’s constantly supervise current and line voltage values and when any harmful condition occurs, the output is deactivated until the fault disappears.
These units feature two setting knobs in order to select the maximum allowed current (FLA) and start up delay (TC) once the voltage fault disappears.
It also features four LED’s for output status and fault detection.
General Features:
- Measuring of Current, Voltage
- Adjustable Parameters: overload, after fault start up delay, start mode
- Four LED indicator lights for status/fault detection
- Reports: Load, Voltage, Current, Adjustment values, Start Mode, Last 20 Faults and power frequency
- Din rail, or flat surface mounting
- Comm Port (MODBUS RTU protocol on RS485@9600 baud output)
- Meets IEEE, IEC & NEMA standards, UL Listed
SPECIFICATIONS
| General Information | |
| Brand | ICM Controls |
| Product Type | Voltage Monitor |
| Power Phase | 3 Phase |
| SymCom | 601, 601-575, 455, 455-575, 455-480R |
| Wagner | DTP-3 |
| A-1 | EAC-8002 |
| Time Mark | 274, 2744, 272, 2722 |
