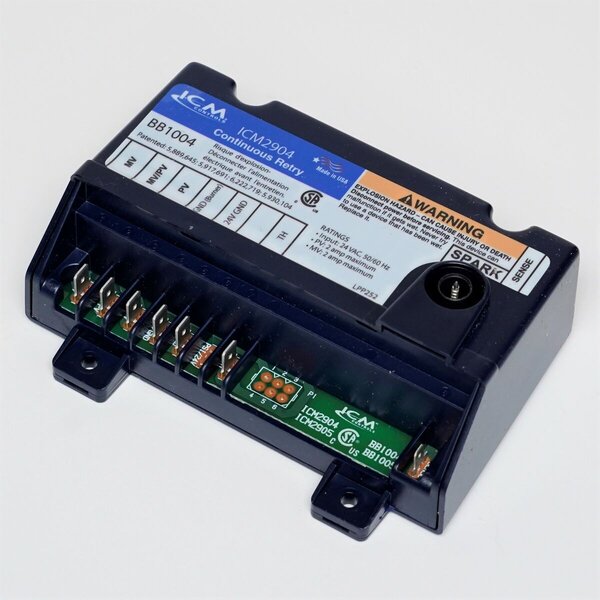

ICM ICM2904 Intermittent Pilot Ignition Control (Replaces Reznor 257009) Side View

ICM ICM2904 Intermittent Pilot Ignition Control (Replaces Reznor 257009)

Availability:

In-Stock

Replaces: Reznor: 257009; UTEC: 1003-638A

$96.82 USD

Default Title

Buy Now

Add to wishlist

SKU:

ICM2904

ID:

PH501-2S9-3162

Categories:

Control Boards / Controls / HVAC / Plumbing and Supply / Thermostats & HVAC Controls

PRODUCT INFO

*Intermittent pilot gas ignition control module*For use with intermittent pilot boilers, furnaces and other heating appliances* Microprocessor-based*Remote flame sensing*Compatible with LP or natural gas*Brown out monitoring

Features

Intermittent Pilot Gas Ignition Control Module
For use with intermittent pilot boilers, furnaces and other heating appliances
Microprocessor-based
Monitors timing, trial for ignition, and flame sensing
Remote flame sensing
100% lockout safety feature
Compatible with LP or Natural Gas
Brown out monitoring circuit

Specifications

Control Voltage: Line 18-30VAC 50/60 Hz
Pilot Valve: 1A @24VAC
Main Gas Valve: 2A @24VAC
Current Draw: 100mA maximum
Pre-Purge Delay: 0 seconds
Ambient Operating Temperature: -40ºF to 167ºF -40C to 75°C
Humidity: 5%-95% R.H. (non-condensing) at +55°C
