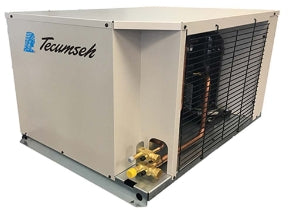

Tecumseh 2JH1013-PF / ASHR9480PNAHP1 Condensing Unit, R-404A/R-448A/R-449A/R-454C/R-455A, 1 HP, 8000 BTU/hr, 208-230 V 1 PH 60 Hz, PLATINUM
Product Overview
The Tecumseh 2JH1013-PF is a commercial refrigeration condensing unit specified for ARGUS A1 Condensing Units, R-404A/R-448A/R-449A/R-454C/R-455A, 1 HP, 8000 BTU/hr, and 208-230 V 1 PH 60 Hz.
This model is listed with High Back Pressure - High Back Pressure / MED TEMP / Medium Temperature, Reciprocating, Tube - Fin, 700 Cubic Feet per Minute, and PLATINUM, giving contractors the main performance and installation details needed for quoting, replacement, and fitment review.
Dimensions, shipping weight, and related-code data are included below to support service replacement, quoting, and installation planning.
Quick Facts
- MPN / SKU: 2JH1013-PF
- Brand: Tecumseh
- Product Type: Condensing Units
- Product Family: ARGUS A1 Condensing Units
- Refrigerant: R-404A/R-448A/R-449A/R-454C/R-455A
- Horsepower: 1 HP
- Capacity: 8000 BTU/hr
- Application: High Back Pressure - High Back Pressure / MED TEMP / Medium Temperature
- Power Supply: 208-230 V 1 PH 60 Hz
- Compressor Type: Reciprocating
- Air Flow: 700 Cubic Feet per Minute
- Dimensions: 28.4 x 28.2 x 18.5 in
Best-fit commercial refrigeration checks
Tecumseh 2JH1013-PF / ASHR9480PNAHP1 Condensing Unit, R-404A/R-448A/R-449A/R-454C/R-455A, 1 HP, 8000 BTU/hr, 208-230 V 1 PH 60 Hz, PLATINUM sits in the condenser and condensing unit side of a commercial refrigeration project. Buyers usually compare this category by medium-temp or low-temp application, BTU capacity, compressor type, refrigerant, voltage, phase, ambient conditions and matched evaporator or unit cooler.
- Good fit: the temperature class, voltage, phase and refrigerant match the refrigeration schedule.
- Great fit: capacity and compressor configuration are checked against the evaporator coil, unit cooler and box load.
- Perfect-fit check: verify the condensing unit with the selected evaporator, controls, line-set plan and installation requirements before ordering.
For the full project path, compare walk-in cooler and freezer boxes, evaporator coils and unit coolers, and commercial refrigeration condensing units.
Call 760-478-7759 or CONTACT US for pricing and to place an order.
SKU:
2JH1013-PF
Categories:
SPECIFICATIONS
Details
- MPN / SKU: 2JH1013-PF
- Model: ASHR9480PNAHP1
- Order Code: 2JH1013-PF
- Brand: Tecumseh
- Product Type: Condensing Units
- Product Family: ARGUS A1 Condensing Units
- Model Series: AK
- Feature Set: PLATINUM
- Brand/Family: ARGUS-Small
- Application: High Back Pressure - High Back Pressure / MED TEMP / Medium Temperature
- Brand Version: ARGUS - Small
- Condenser / Fan Package: TUBE/FIN & PSC MOTOR
- Feature: Platinum
- Feature Package: PLATINUM
- Package / Feature: PLATINUM
- Refrigerant: R-404A/R-448A/R-449A/R-454C/R-455A
Size & Installation
- Dimensions: 28.4 x 28.2 x 18.5 in
- Dimensions - Height: 18.5
- Dimensions - Width: 28.2
- Dimensions - Length: 28.4
- Dimensions Unit of Measure: IN
- Shipping Weight: 159 lb
- Discharge Line Size: 3/8 in (9.52mm)
- Suction Line Size: 3/8_IN
- Indoor / Outdoor Use: Outdoor Unit
- Chassis Size: SMALL
- Unit Family: Outdoor Unit
Performance
- Capacity: 8000 BTU/hr
- Rated Capacity: 8000 BTU/hr
- Air Flow: 700 Cubic Feet per Minute
- Compressor Type: Reciprocating
- Condenser / Coil Type: Tube - Fin
- Condenser Type: TUBE/FIN & PSC MOTOR
- Coil Type: Tube - Fin
- Design Pressure: 181 / 450
- Design Pressure Low: 181
- Design Pressure High: 450
- Pump Down Capacity: 9.5 Pounds
- Horsepower: 1 HP
Power & Electrical
- Power Supply: 208-230 V 1 PH 60 Hz
- Minimum Circuit Ampacity (MCA): 10.6
- Maximum Fuse Size: 15
- Run Capacitor Mfd. Voltage: 35 MFD/440 Volt
- Fan Motor Quantity: 1
Source & Cross Reference
- Related Codes: 2JH1001-PF / ASHR9480PNAHP1 / ASHR9480ZNAFP1 / DGU1940AK-TF-P01
- Item Type/Name: ASHR9480ZNAFP1 OUTDOOR CONDENSING UNIT US1
- Legacy DGU: DGU1940AK-TF-P01
Additional Details
- Item #: 2JH1013-PF
- Compressor: AL-1111-E
- Condensing Unit Type: Outdoor
