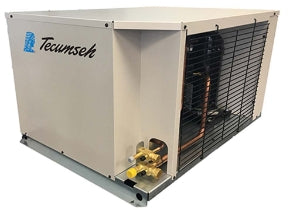

Tecumseh 2JH204-PF / ASHR9440PNAHP1 Condensing Unit, R-404A/R-448A/R-449A/R-452A, .5 / 1/2 HP, 4000 BTU/hr, 208-230 V 1 PH 60 Hz, PLATINUM
Product Overview
The Tecumseh 2JH204-PF is a commercial refrigeration condensing unit specified for ARGUS A1 Condensing Units, R-404A/R-448A/R-449A/R-452A, .5 / 1/2 HP, 4000 BTU/hr, and 208-230 V 1 PH 60 Hz.
This model is listed with MED TEMP / Medium Temperature, Reciprocating, TUBE/FIN & PSC MOTOR, and PLATINUM, giving contractors the main performance and installation details needed for quoting, replacement, and fitment review.
Dimensions, shipping weight, and related-code data are included below to support service replacement, quoting, and installation planning.
Quick Facts
- MPN / SKU: 2JH204-PF
- Brand: Tecumseh
- Product Type: Condensing Units
- Product Family: ARGUS A1 Condensing Units
- Refrigerant: R-404A/R-448A/R-449A/R-452A
- Horsepower: .5 / 1/2 HP
- Capacity: 4000 BTU/hr
- Application: MED TEMP / Medium Temperature
- Power Supply: 208-230 V 1 PH 60 Hz
- Compressor Type: Reciprocating
- Shipping Weight: 159 lb
- Package / Feature: PLATINUM
Best-fit commercial refrigeration checks
Tecumseh 2JH204-PF / ASHR9440PNAHP1 Condensing Unit, R-404A/R-448A/R-449A/R-452A, .5 / 1/2 HP, 4000 BTU/hr, 208-230 V 1 PH 60 Hz, PLATINUM sits in the condenser and condensing unit side of a commercial refrigeration project. Buyers usually compare this category by medium-temp or low-temp application, BTU capacity, compressor type, refrigerant, voltage, phase, ambient conditions and matched evaporator or unit cooler.
- Good fit: the temperature class, voltage, phase and refrigerant match the refrigeration schedule.
- Great fit: capacity and compressor configuration are checked against the evaporator coil, unit cooler and box load.
- Perfect-fit check: verify the condensing unit with the selected evaporator, controls, line-set plan and installation requirements before ordering.
For the full project path, compare walk-in cooler and freezer boxes, evaporator coils and unit coolers, and commercial refrigeration condensing units.
Call 760-478-7759 or CONTACT US for pricing and to place an order.
SKU:
2JH204-PF
Categories:
SPECIFICATIONS
Details
- MPN / SKU: 2JH204-PF
- Model: ASHR9440PNAHP1
- Order Code: 2JH204-PF
- Brand: Tecumseh
- Product Type: Condensing Units
- Product Family: ARGUS A1 Condensing Units
- Model Series: AE
- Feature Set: PLATINUM
- Application: MED TEMP / Medium Temperature
- Brand Version: ARGUS - Small
- Condenser / Fan Package: TUBE/FIN & PSC MOTOR
- Feature Package: PLATINUM
- Package / Feature: PLATINUM
- Refrigerant: R-404A/R-448A/R-449A/R-452A
Additional Details
- Item #: 2JH204-PF
Performance
- Capacity: 4000 BTU/hr
- Rated Capacity: 4000 BTU/hr
- Compressor Type: Reciprocating
- Condenser / Coil Type: TUBE/FIN & PSC MOTOR
- Condenser Type: TUBE/FIN & PSC MOTOR
- Horsepower: .5 / 1/2 HP
Power & Electrical
- Power Supply: 208-230 V 1 PH 60 Hz
Size & Installation
- Shipping Weight: 159 lb
- Indoor / Outdoor Use: Outdoor Unit
- Chassis Size: SMALL
- Unit Family: Outdoor Unit
Source & Cross Reference
- Related Codes: 2JH202-PF / ASHR9440PNAHP1 / ASHR9440ZNAFP1 / DGU1940AE-TF-P01
- Item Type/Name: ASHR9440ZNAFP1 OUTDOOR CONDENSING UNIT US1
- Legacy DGU: DGU1940AE-TF-P01
