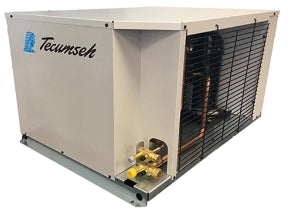

Tecumseh 2JH3001-PF / ASHS9524ZNAFP1 Condensing Unit, R-404A/R-448A/R-449A/R-452A, 3 HP, 24000 BTU/hr, 208-230 V 1 PH 60 Hz, PLATINUM
Product Overview
The Tecumseh 2JH3001-PF is a commercial refrigeration condensing unit specified for ARGUS A1 Condensing Units, R-404A/R-448A/R-449A/R-452A, 3 HP, 24000 BTU/hr, and 208-230 V 1 PH 60 Hz.
This model is listed with CBP - Commercial Back Pressure / MED TEMP / Medium Temperature, Scroll, Tube - Fin, 4300 Cubic Feet per Minute, and PLATINUM, giving contractors the main performance and installation details needed for quoting, replacement, and fitment review.
Dimensions, shipping weight, and related-code data are included below to support service replacement, quoting, and installation planning.
Quick Facts
- MPN / SKU: 2JH3001-PF
- Brand: Tecumseh
- Product Type: Condensing Units
- Product Family: ARGUS A1 Condensing Units
- Refrigerant: R-404A/R-448A/R-449A/R-452A
- Horsepower: 3 HP
- Capacity: 24000 BTU/hr
- Application: CBP - Commercial Back Pressure / MED TEMP / Medium Temperature
- Power Supply: 208-230 V 1 PH 60 Hz
- Compressor Type: Scroll
- Air Flow: 4300 Cubic Feet per Minute
- Dimensions: 44 x 33.2 x 34.8 in
Best-fit commercial refrigeration checks
Tecumseh 2JH3001-PF / ASHS9524ZNAFP1 Condensing Unit, R-404A/R-448A/R-449A/R-452A, 3 HP, 24000 BTU/hr, 208-230 V 1 PH 60 Hz, PLATINUM sits in the condenser and condensing unit side of a commercial refrigeration project. Buyers usually compare this category by medium-temp or low-temp application, BTU capacity, compressor type, refrigerant, voltage, phase, ambient conditions and matched evaporator or unit cooler.
- Good fit: the temperature class, voltage, phase and refrigerant match the refrigeration schedule.
- Great fit: capacity and compressor configuration are checked against the evaporator coil, unit cooler and box load.
- Perfect-fit check: verify the condensing unit with the selected evaporator, controls, line-set plan and installation requirements before ordering.
For the full project path, compare walk-in cooler and freezer boxes, evaporator coils and unit coolers, and commercial refrigeration condensing units.
Call 760-478-7759 or CONTACT US for pricing and to place an order.
SKU:
2JH3001-PF
Categories:
SPECIFICATIONS
Details
- MPN / SKU: 2JH3001-PF
- Model: ASHS9524ZNAFP1
- Order Code: 2JH3001-PF
- Brand: Tecumseh
- Product Type: Condensing Units
- Product Family: ARGUS A1 Condensing Units
- Model Series: VS
- Feature Set: PLATINUM
- Brand/Family: ARGUS-Large
- Application: CBP - Commercial Back Pressure / MED TEMP / Medium Temperature
- Brand Version: ARGUS - Large
- Condenser / Fan Package: TUBE/FIN & PSC MOTOR
- Feature: Platinum
- Feature Package: PLATINUM
- Package / Feature: PLATINUM
- Refrigerant: R-404A/R-448A/R-449A/R-452A
Size & Installation
- Dimensions: 44 x 33.2 x 34.8 in
- Dimensions - Height: 34.8
- Dimensions - Width: 33.2
- Dimensions - Length: 44
- Dimensions Unit of Measure: IN
- Shipping Weight: 347 lb
- Discharge Line Size: 1/2 in (12.7mm)
- Suction Line Size: 7/8 in (22.2mm)
- Indoor / Outdoor Use: Outdoor Unit
- Chassis Size: LARGE
- Unit Family: Outdoor Unit
Performance
- Capacity: 24000 BTU/hr
- Rated Capacity: 24000 BTU/hr
- Air Flow: 4300 Cubic Feet per Minute
- Compressor Type: Scroll
- Condenser / Coil Type: Tube - Fin
- Condenser Type: TUBE/FIN & PSC MOTOR
- Coil Type: Tube - Fin
- Design Pressure: 181 / 450
- Design Pressure Low: 181
- Design Pressure High: 450
- Pump Down Capacity: 36.26 Pounds
- Horsepower: 3 HP
Power & Electrical
- Power Supply: 208-230 V 1 PH 60 Hz
- Minimum Circuit Ampacity (MCA): 28.7
- Maximum Fuse Size: 45
- Run Capacitor Mfd. Voltage: 60 MFD/370 Volt
- Fan Motor Quantity: 1
Source & Cross Reference
- Related Codes: 2JH3010-PF / ASHS9524PNAHP1 / ASHS9524ZNAFP1 / DGU1940VS-TF-P02
- Item Type/Name: ASHS9524ZNAFP1 OUTDOOR CONDENSING UNIT US1
- Legacy DGU: DGU1940VS-TF-P02
Additional Details
- Item #: 2JH3001-PF
- Compressor: VS323ET-109-J7
- Condensing Unit Type: Outdoor
