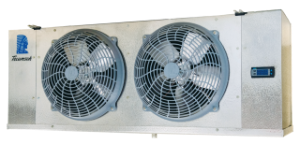

Tecumseh ECRA0082S-AA6A-X / ECRA0082S-AA6A Unit Cooler, R-448A / R-449A, 8200 BTU/hr, 115 V 1 PH 60 Hz, AIR, R448A/R449A + LLSV
Product Overview
The Tecumseh ECRA0082S-AA6A-X is a commercial refrigeration unit cooler specified for CRIOS, 8200 BTU/hr, R-448A / R-449A, and AIR.
Published data lists 115V 1 PH 60Hz, 2 fan motor(s), and 1500 Cubic Feet per Minute, giving contractors a faster way to compare airflow, electrical requirements, and installation needs.
Use the quick facts and grouped specifications below to confirm refrigerant, capacity, fan power, defrost setup, and connection sizes before ordering.
Quick Facts
- MPN / SKU: ECRA0082S-AA6A-X
- Brand: Tecumseh
- Product Type: Unit Coolers
- Product Family: CRIOS
- Refrigerant: R-448A / R-449A
- Capacity: 8200 BTU/hr
- Defrost: AIR
- Fan Voltage: 115V 1 PH 60Hz
- Fan Air Output: 1500 Cubic Feet per Minute
- Fan Motor Qty: 2
- Connections: Liquid inlet 3/8 in (9.52mm), and Suction outlet 7/8 in (22.2mm)
- Shipping Weight: 45 lb
Best-fit commercial refrigeration checks
Tecumseh ECRA0082S-AA6A-X / ECRA0082S-AA6A Unit Cooler, R-448A / R-449A, 8200 BTU/hr, 115 V 1 PH 60 Hz, AIR, R448A/R449A + LLSV sits in the evaporator coil and unit cooler side of a commercial refrigeration project. Buyers usually compare this category by box or case application, temperature range, BTU capacity, refrigerant, voltage, phase, defrost style, mounting profile and airflow.
- Good fit: the product class, voltage, phase and refrigerant match the refrigeration schedule.
- Great fit: capacity, airflow and defrost style are checked against the walk-in cooler, walk-in freezer or reach-in application.
- Perfect-fit check: verify this evaporator or unit cooler with the selected condensing unit, controls and installation plan before ordering.
For the full project path, compare walk-in cooler and freezer boxes, evaporator coils and unit coolers, and commercial refrigeration condensing units.
Call 760-478-7759 or CONTACT US for pricing and to place an order.
SKU:
ECRA0082S-AA6A-X
Categories:
SPECIFICATIONS
Details
- MPN / SKU: ECRA0082S-AA6A-X
- Model: ECRA0082S-AA6A
- Brand: Tecumseh
- Product Type: Unit Coolers
- Product Family: CRIOS
- Package / Feature: R448A/R449A + LLSV
- Refrigerant: R-448A / R-449A
- Status: Active
Size & Installation
- Shipping Weight: 45 lb
- Liquid Inlet Connection: 3/8 in (9.52mm)
- Suction Outlet Connection: 7/8 in (22.2mm)
- Defrost: AIR
- Expansion Valve: Mechanical
- Solenoid Valve: Yes
Source & Cross Reference
- Item Type/Name: UNIT COOLER, AIR DEFROST, 8200 BTU, R404A/R448A/R449A, 115v, 6 FPI, TXV/LLSV (R448/R449A)
Additional Details
- Number of Circuits: 2
- Fin Spacing: 6 fins per inch / 4.23 mm
- Fin Tube Surface: Smooth
- Fin Type: Corrugated
- Pack Tube Material: Aluminum
- Drain Pan: Standard
- System Platform Name: CRIOS
Performance
- Capacity: 8200 BTU/hr
- Rated Capacity: 8200 BTU/hr
- Fan Air Output: 1500 Cubic Feet per Minute
- Design Pressure PSIG: 300
- Fan Diameter: 12 In
- Fan Motor Qty: 2
- Fan Motor Type: EC
Power & Electrical
- Power Supply: 115 V 1 PH 60 Hz
- Fan Voltage: 115V 1 PH 60Hz
- MOPD: 15
- Fan Motor FLA: 1.15
- Fan Motor Power: 60 Watts
- Fan Motor HP EA: 1/20
- Fan Motor Minimum Amperage 230V: 1.3
- Fan Motor Ph: 1
- Fan Motor Volt Code: AA
- Fan Timer Relay: Standard
- Heater Safety Thermostat: No
