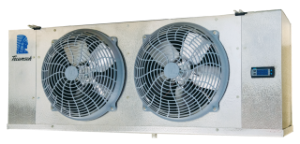

Tecumseh ECRE0067S-NA6A-Z / ECRE0067S-NA6A Unit Cooler, R-404A / R-448A / R-449A, 6700 BTU/hr, 208-230 V 1 PH 60 Hz, Electric Defrost, EEV / KE2 Therm Smart
Product Overview
The Tecumseh ECRE0067S-NA6A-Z is a commercial refrigeration unit cooler specified for CRIOS, 6700 BTU/hr, R-404A / R-448A / R-449A, and Electric Defrost.
Published data lists 208-230V 1 PH 60Hz, 2 fan motor(s), and 1500 Cubic Feet per Minute, giving contractors a faster way to compare airflow, electrical requirements, and installation needs.
Use the quick facts and grouped specifications below to confirm refrigerant, capacity, fan power, defrost setup, and connection sizes before ordering.
Quick Facts
- MPN / SKU: ECRE0067S-NA6A-Z
- Brand: Tecumseh
- Product Type: Unit Coolers
- Product Family: CRIOS
- Refrigerant: R-404A / R-448A / R-449A
- Capacity: 6700 BTU/hr
- Defrost: Electric Defrost
- Fan Voltage: 208-230V 1 PH 60Hz
- Fan Air Output: 1500 Cubic Feet per Minute
- Fan Motor Qty: 2
- Connections: Liquid inlet 3/8 in (9.52mm), and Suction outlet 7/8 in (22.2mm)
- Shipping Weight: 49 lb
Best-fit commercial refrigeration checks
Tecumseh ECRE0067S-NA6A-Z / ECRE0067S-NA6A Unit Cooler, R-404A / R-448A / R-449A, 6700 BTU/hr, 208-230 V 1 PH 60 Hz, Electric Defrost, EEV / KE2 Therm Smart sits in the evaporator coil and unit cooler side of a commercial refrigeration project. Buyers usually compare this category by box or case application, temperature range, BTU capacity, refrigerant, voltage, phase, defrost style, mounting profile and airflow.
- Good fit: the product class, voltage, phase and refrigerant match the refrigeration schedule.
- Great fit: capacity, airflow and defrost style are checked against the walk-in cooler, walk-in freezer or reach-in application.
- Perfect-fit check: verify this evaporator or unit cooler with the selected condensing unit, controls and installation plan before ordering.
For the full project path, compare walk-in cooler and freezer boxes, evaporator coils and unit coolers, and commercial refrigeration condensing units.
Call 760-478-7759 or CONTACT US for pricing and to place an order.
SKU:
ECRE0067S-NA6A-Z
Categories:
SPECIFICATIONS
Details
- MPN / SKU: ECRE0067S-NA6A-Z
- Model: ECRE0067S-NA6A
- Brand: Tecumseh
- Product Type: Unit Coolers
- Product Family: CRIOS
- Package / Feature: EEV / KE2 Therm Smart
- Refrigerant: R-404A / R-448A / R-449A
- Status: Active
Size & Installation
- Shipping Weight: 49 lb
- Liquid Inlet Connection: 3/8 in (9.52mm)
- Suction Outlet Connection: 7/8 in (22.2mm)
- Defrost: Electric Defrost
- Expansion Valve: Electronic
- Solenoid Valve: No
Source & Cross Reference
- Item Type/Name: UNIT COOLER, ELECTRIC DEFROST, 6700 BTU, R404A/R448A/R449A, 208-230v, 6 FPI, EEV/KE2 THERM SMART
Additional Details
- Number of Circuits: 2
- Fin Spacing: 6 fins per inch / 4.23 mm
- Fin Tube Surface: Smooth
- Fin Type: Corrugated
- Pack Tube Material: Aluminum
- Drain Pan: Standard
- System Platform Name: CRIOS
Performance
- Capacity: 6700 BTU/hr
- Rated Capacity: 6700 BTU/hr
- Fan Air Output: 1500 Cubic Feet per Minute
- Design Pressure PSIG: 300
- Fan Diameter: 12 In
- Fan Motor Qty: 2
- Fan Motor Type: EC
Power & Electrical
- Power Supply: 208-230 V 1 PH 60 Hz
- Fan Voltage: 208-230V 1 PH 60Hz
- Heater Voltage: 208-230V ~ 60Hz
- MOPD: 15
- Fan Motor FLA: 0.57
- Fan Motor Power: 60 Watts
- Heater Amps: 10
- Heater Watts: 2200 Watts
- Heater Phase: 1
- Drain Pan Heater: Standard
- Fan Motor HP EA: 1/20
- Fan Motor Minimum Amperage 230V: 10.22
- Fan Motor Ph: 1
- Fan Timer Relay: Standard
- Heater Safety Thermostat: Yes
