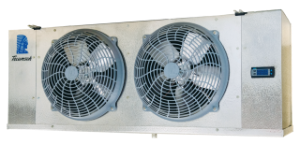

Tecumseh ECRE0158S-NA6A-W / ECRE0158S-NA6A Unit Cooler, R-404A / R-448A / R-449A, 15800 BTU/hr, 208-230 V 1 PH 60 Hz, Electric Defrost, Base
Tecumseh ECRE0158S-NA6A-W / ECRE0158S-NA6A Unit Cooler, R-404A / R-448A / R-449A, 15800 BTU/hr, 208-230 V 1 PH 60 Hz, Electric Defrost, Base
Availability:
In-Stock
Product Overview
The Tecumseh ECRE0158S-NA6A-W is a commercial refrigeration unit cooler specified for CRIOS, 15800 BTU/hr, R-404A / R-448A / R-449A, and Electric Defrost.
Published data lists 208-230V 1 PH 60Hz, 4 fan motor(s), and 3000 Cubic Feet per Minute, giving contractors a faster way to compare airflow, electrical requirements, and installation needs.
Use the quick facts and grouped specifications below to confirm refrigerant, capacity, fan power, defrost setup, and connection sizes before ordering.
Quick Facts
- MPN / SKU: ECRE0158S-NA6A-W
- Brand: Tecumseh
- Product Type: Unit Coolers
- Product Family: CRIOS
- Refrigerant: R-404A / R-448A / R-449A
- Capacity: 15800 BTU/hr
- Defrost: Electric Defrost
- Fan Voltage: 208-230V 1 PH 60Hz
- Fan Air Output: 3000 Cubic Feet per Minute
- Fan Motor Qty: 4
- Connections: Liquid inlet 1/2 in (12.7mm), and Suction outlet 7/8 in (22.2mm)
- Shipping Weight: 87 lb
Call 760-478-7759 or CONTACT US for pricing and to place an order.
SKU:
ECRE0158S-NA6A-W
Categories:
SPECIFICATIONS
Details
- MPN / SKU: ECRE0158S-NA6A-W
- Model: ECRE0158S-NA6A
- Brand: Tecumseh
- Product Type: Unit Coolers
- Product Family: CRIOS
- Package / Feature: Base
- Refrigerant: R-404A / R-448A / R-449A
- Status: Active
Size & Installation
- Shipping Weight: 87 lb
- Liquid Inlet Connection: 1/2 in (12.7mm)
- Suction Outlet Connection: 7/8 in (22.2mm)
- Defrost: Electric Defrost
- Solenoid Valve: No
Source & Cross Reference
- Item Type/Name: UNIT COOLER, ELECTRIC DEFROST, 15800 BTU, R404A/R448A/R449A, 208-230v, 6 FPI, BASE
Additional Details
- Number of Circuits: 6
- Fin Spacing: 6 fins per inch / 4.23 mm
- Fin Tube Surface: Smooth
- Fin Type: Corrugated
- Pack Tube Material: Aluminum
- Drain Pan: Standard
- System Platform Name: CRIOS
Performance
- Capacity: 15800 BTU/hr
- Rated Capacity: 15800 BTU/hr
- Fan Air Output: 3000 Cubic Feet per Minute
- Design Pressure PSIG: 300
- Fan Diameter: 12 In
- Fan Motor Qty: 4
- Fan Motor Type: EC
Power & Electrical
- Power Supply: 208-230 V 1 PH 60 Hz
- Fan Voltage: 208-230V 1 PH 60Hz
- Heater Voltage: 208-230V ~ 60Hz
- MOPD: 25
- Fan Motor FLA: 1.15
- Fan Motor Power: 60 Watts
- Heater Amps: 20
- Heater Watts: 4400 Watts
- Heater Phase: 1
- Drain Pan Heater: Standard
- Fan Motor HP EA: 1/20
- Fan Motor Minimum Amperage 230V: 20.43
- Fan Motor Ph: 1
- Fan Timer Relay: Standard
- Heater Safety Thermostat: Yes
