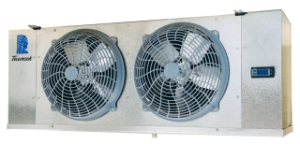

Tecumseh ECRE0285S-NA6A-Y / ECRE0285S-NA6A Unit Cooler, R404A, 28500 BTU/hr, 208-230 V 1 PH 60 Hz, Electric Defrost, R404A + LLSV
Tecumseh ECRE0285S-NA6A-Y / ECRE0285S-NA6A Unit Cooler, R404A, 28500 BTU/hr, 208-230 V 1 PH 60 Hz, Electric Defrost, R404A + LLSV
Availability:
In-Stock
Product Overview
The Tecumseh ECRE0285S-NA6A-Y is a commercial refrigeration unit cooler specified for CRIOS, 28500 BTU/hr, R404A, and Electric Defrost.
Published data lists 208-230V 1 PH 60Hz, 6 fan motor(s), and 4500 Cubic Feet per Minute, giving contractors a faster way to compare airflow, electrical requirements, and installation needs.
Use the quick facts and grouped specifications below to confirm refrigerant, capacity, fan power, defrost setup, and connection sizes before ordering.
Quick Facts
- MPN / SKU: ECRE0285S-NA6A-Y
- Brand: Tecumseh
- Product Type: Unit Coolers
- Product Family: CRIOS
- Refrigerant: R404A
- Capacity: 28500 BTU/hr
- Defrost: Electric Defrost
- Fan Voltage: 208-230V 1 PH 60Hz
- Fan Air Output: 4500 Cubic Feet per Minute
- Fan Motor Qty: 6
- Connections: Liquid inlet 1/2 in (12.7mm), and Suction outlet 1-1/8 in (28.6mm)
- Shipping Weight: 124 lb
Best commercial refrigeration
Tecumseh ECRE0285S-NA6A-Y / ECRE0285S-NA6A Unit Cooler, R404A, 28500 BTU/hr, 208-230 V 1 PH 60 Hz, Electric Defrost, R404A + LLSV sits in the evaporator coil and unit cooler side of a commercial refrigeration project. Buyers should compare this category by box or case application, temperature range, BTU capacity, refrigerant, voltage, phase, defrost style, mounting profile and airflow.
For the full project path, compare walk-in cooler and freezer boxes, evaporator coils and unit coolers, and commercial refrigeration condensing units.
Call 760-478-7759 or CONTACT US for pricing and to place an order.
SKU:
ECRE0285S-NA6A-Y
Categories:
SPECIFICATIONS
Details
- MPN / SKU: ECRE0285S-NA6A-Y
- Model: ECRE0285S-NA6A
- Brand: Tecumseh
- Product Type: Unit Coolers
- Product Family: CRIOS
- Package / Feature: R404A + LLSV
- Refrigerant: R404A
- Status: Active
Size & Installation
- Shipping Weight: 124 lb
- Liquid Inlet Connection: 1/2 in (12.7mm)
- Suction Outlet Connection: 1-1/8 in (28.6mm)
- Defrost: Electric Defrost
- Expansion Valve: Mechanical
- Solenoid Valve: Yes
Source & Cross Reference
- Item Type/Name: UNIT COOLER, ELECTRIC DEFROST, 28500 BTU, R404A/R448A/R449A, 208-230v, 6 FPI, TXV/LLSV (R404A)
Performance
- Capacity: 28500 BTU/hr
- Rated Capacity: 28500 BTU/hr
- Fan Air Output: 4500 Cubic Feet per Minute
- Design Pressure PSIG: 300
- Fan Diameter: 12 In
- Fan Motor Qty: 6
- Fan Motor Type: EC
Power & Electrical
- Power Supply: 208-230 V 1 PH 60 Hz
- Fan Voltage: 208-230V 1 PH 60Hz
- Heater Voltage: 208-230V ~ 60Hz
- MOPD: 35
- Fan Motor FLA: 1.72
- Fan Motor Power: 60 Watts
- Heater Amps: 30
- Heater Watts: 6600 Watts
- Heater Phase: 1
- Fan Motor HP EA: 1/20
- Fan Motor Minimum Amperage 230V: 30.65
- Fan Motor Ph: 1
- Heater Safety Thermostat: Yes
