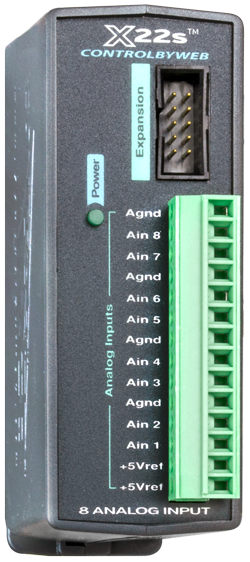

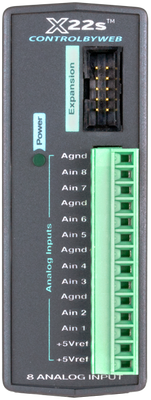

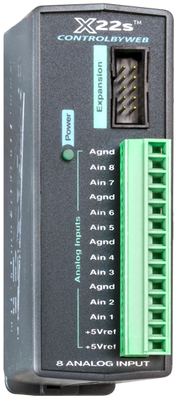

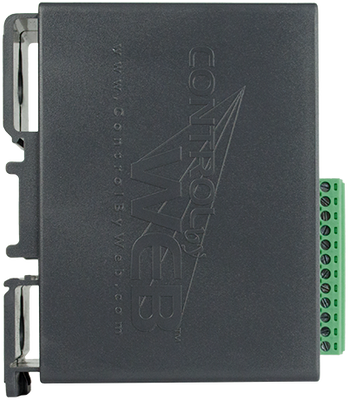

X-22s | 8 Analog Input Expansion Module

Availability:
Out-Stock
The X-22s adds eight configurable analog inputs to the X-400 controller.

$10,000.00 USD

Sold Out

SKU:
X-22s

PRODUCT INFO

The X-22s expansion module is used with an X-400 or X-600M controller. The X-22s has eight precision analog inputs that can be configured for various voltage ranges and 4-20mA sensors. The X-22s employs a 16-bit SAR A/D converter and can make both single or differential input measurements. A 5.0V reference output can be used to power potentiometers or other resistance sensing sensors. The X-22s is ideal for measuring precision analog voltages in industrial environments.
One or more X-22s expansion modules can be connected to an X-400 controller with a ribbon cable. The ribbon cable provides both power and communications to the expansion modules.
Other expansion modules with different I/O combinations are also available.

The X-22s can be used to monitor tank levels.

Features:

  • Eight precision analog inputs
  • Input Voltage Ranges: ±1.28V, ±2.56V, ±5.12V, ±10.24V, 4-20mA
  • Removable terminal connector
  • Powered through expansion bus - no separate power supply connections are required
  • High input impedance
  • Great for monitoring applications including:
  1. Temperature
  2. Electrical Current
  3. Pressure
  4. Fluid Levels
  5. and much more...

X-22s Part Numbers:

       X-22s
OUTPUTS: N/A
INPUTS: Analog: 8 (±1.28V, ±2.56V, ±5.12V, ±10.24V, 4-20mA)
POWER SUPPLY: 9-28VDC

Electromagnetic Compliance:

  • IEC CISPR 22, CISPR 24
  • FCC 47CFR15 (Class B)
  • EN55024 ITE Immunity (2010)
  • EN55022 Emissions (2010)

Product Safety Compliance:

  • IEC 61010-1

SPECIFICATIONS

Analog Inputs

Number of Inputs8
Type
Single-ended, differential, 4-20mA (0-20mA), or a combination
Input Range
±1.28V, ±2.56V, ±5.12V, ±10.24V, 4-20mA
Resolution
16-bit, SAR



Reference Output
Voltage5.00V
Accuracy0.04%
Temperature Coefficient3ppm/°C Max
Current25mA max* (*Maximum current from the reference may be increased if the environmental temperature is decreased)


Connectors
Inputs14-Position, 3.81mm terminal spacing, Removable. For 16-28 AWG wire
Expansion ConnectorRibbon cable, 10-conductor, polarized, 2x5-position, 0.100" pitch. Provides power and communications for expansion modules (Communications: RS-485)
LED Indicators
Number of LEDs1 (Power on)

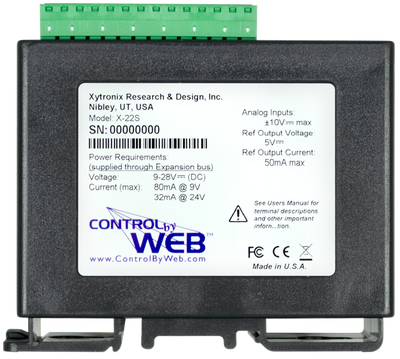

Power Requirements
Voltage9-28 VDC (supplied via the X-400, 24V recommended)
Max CurrentSee table below for typical values at 25°C.



9 VDC Power Supply
Current (voltage mode)
42 mA
Current (current mode)
83 mA
12 VDC Power Supply

Current (voltage mode)
32 mA
Current (current mode)
62 mA
24 VDC Power Supply

Current (voltage mode)
17 mA
Current (current mode)
33 mA


Physical
Size

1.41in (35.7mm) wide
3.88in (98.5mm) tall
3.1in (78mm) deep (not including connector)

Weight0.3 lb
Enclosure MaterialLexan 940 Polycarbonate Plastic
Enclosure Flame RatingUL94 V0



Environmental
Operating Temperature-40°F to 50°F (-40°C to 122°C)
Storage Temperature-40°F to 85°F (-40°C to 185°C)
Humidity5-95%, non-condensing
AltitudeUp to 2,000m
Indoor use or NEMA-4 protected location
