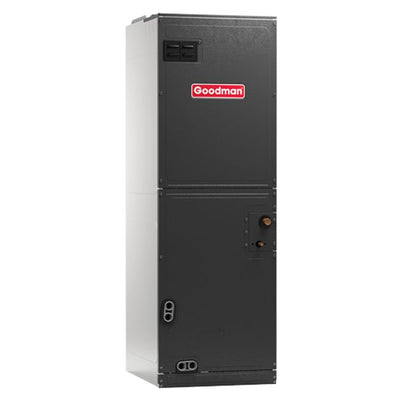

Goodman 2 Ton Air Handler Multi-Position, W/PSC Motor
Nom. Tons: 2; Volts: 208/230; Nom. CFM: 965; CFM @ 0.5" ESP: 965; CFM High @ 0.3 ESP: 1,020; Min. Circuit Amps: 2.4; Max. Fuse Size: 15; Liquid Conn.: 3/8"; Suction Fitting: 3/4"; Width: 17-1/2"; Height: 45"; Depth: 21"; Wt. Lbs.: 100; Motor Type: PSC; Air Handler Type: Single Piece; Configuration: Multi-Position
$555.00 USD
SKU:
ARUF29B14
ID:
HE180-1005
Categories:
PRODUCT INFO
Product Features
- Check flowrator for cooling and heat pump applications
- Direct drive, multi-speed PSC blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
- AHRI certified; ETL listed
- Rigid SmartFrame™ cabinet
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
- Field Installed 3 kW – 25 kW electric heater kits available
SPECIFICATIONS
| Nominal Ratings | |
| Cooling (BTU/h) | 25,000 |
| Piston Size | 0.057 |
| Blower | |
| Diameter | 9-1/2" |
| Width | 6" |
| Coil Connections | |
| Liquid | 3/8" |
| Suction | 3/4" |
| Coil Drain Connect (FPT) | 3/4" |
| Blower Motor | |
| Full Load Amps (FLA) | 1.75 |
| Horsepower (HP) | 1/3 |
| Ship Weight (lbs) | 113 |
