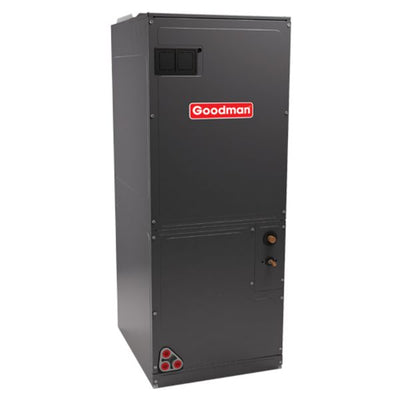

Goodman 2 Ton Air Handler Multi-Position, W/Variable-Speed ECM Motor

Availability:
In-Stock
Nom. Tons: 2; Volts: 208/240; Nom. CFM: 1,100; CFM @ 0.5" ESP: 1,110; CFM High @ 0.3 ESP: 1,125; Min. Circuit Amps: 4.9; Max. Fuse Size: 15; Liquid Conn.: 3/8"; Suction Fitting: 3/4"; Width: 17-1/2"; Height: 45"; Depth: 21"; Wt. Lbs.: 100; Motor Type: ECM; Air Handler Type: Single Piece; Configuration: Multi-Position
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

Product Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ Technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • All-aluminum evaporator coil
  • AHRI certified; ETL listed
  • Rigid SmartFrame™ cabinet
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access
  • Field Installed 3 kW – 25 kW electric heater kits available

SPECIFICATIONS

General Information
Product LineAVPTC
Refrigerant TypeR-410A
Blower MotorVariable Speed
Motor TypeECM
Configuration Multi-Position
Electric HeatAvailable
Installation AvailableNo
UPC663051501218



Performance
Capacity2.0 Tons
Nominal Cooling Capacity24000 BTU
Maximum Air Flow1125 CFM
Minimum Air Flow410 CFM



Dimensions
Product Height45 Inches
Product Width17 1/2 Inches
Product Depth21 Inches
Shipping Weight100 Pounds
Liquid Valve Connection Size3/8 Inch
Suction Valve Connection Size3/4 Inch



Certifications
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
