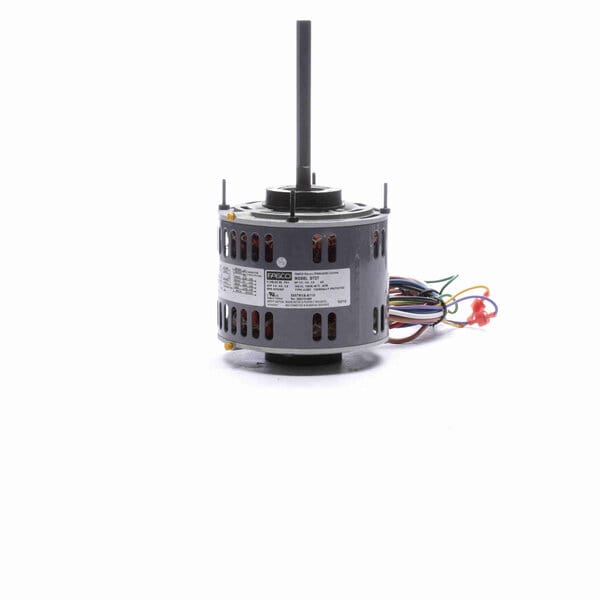

Fasco Direct Drive Motor, 1075 RPM, 1/3-1/4-1/5 HP, 115 V, 48 Frame, Open Air Over
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 48" Leads with .5" Strip
- Resilient Mounting Ring Shaft End and Lead End
- HM106-0092 replaces the following brands and item numbers: Ideal replacements for blowers in direct drive furnaces, air conditioners and exhaust fans
$181.00 USD
PRODUCT INFO
Applications
Ideal replacements for blowers in direct drive furnaces, air conditioners and exhaust fans
Features
Automatic thermal protection. Extended tie rods shaft end. Mounting hubs both ends. Capacitor not included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508021263 |
| Output HP | 1/3-1/4-1/5 Hp |
| Frequency | 60 Hz |
| Current | 5.9-4.6-3.8 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 4.45 in |
| Shaft Extension | 5.94 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Shaft Diameter | 0.500 in |
