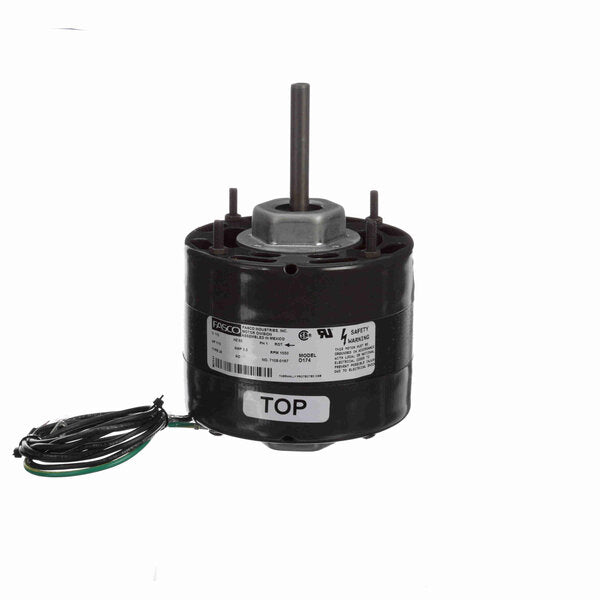

Fasco Direct Drive Motor, 1500 RPM, 1/10 HP, 115 V, 4.4" Diameter, Open Air Over
- General Purpose Motor
- 4.4" Diameter
- Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Hex Mounting Hub Shaft End and Lead End
- HM106-0109 replaces the following brands and item numbers: Replacements for motors used on roof ventilators, may also be used on fan and blower applications where the motor is located in the air system
$278.00 USD
PRODUCT INFO
Applications
Replacements for motors used on roof ventilators, may also be used on fan and blower applications where the motor is located in the air system
Features
Thermally protected, 60 Hz. Shafts: flatted. Studs: four studs on 3.89" centers, shaft end, 1/2" long all motors
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028789 |
| Output HP | 1/10 Hp |
| Frequency | 60 Hz |
| Current | 3.5 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 4.4 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1500 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 2.9 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Na |
| Overall Length | 6.99 in |
| Shaft Diameter | 0.375 in |
