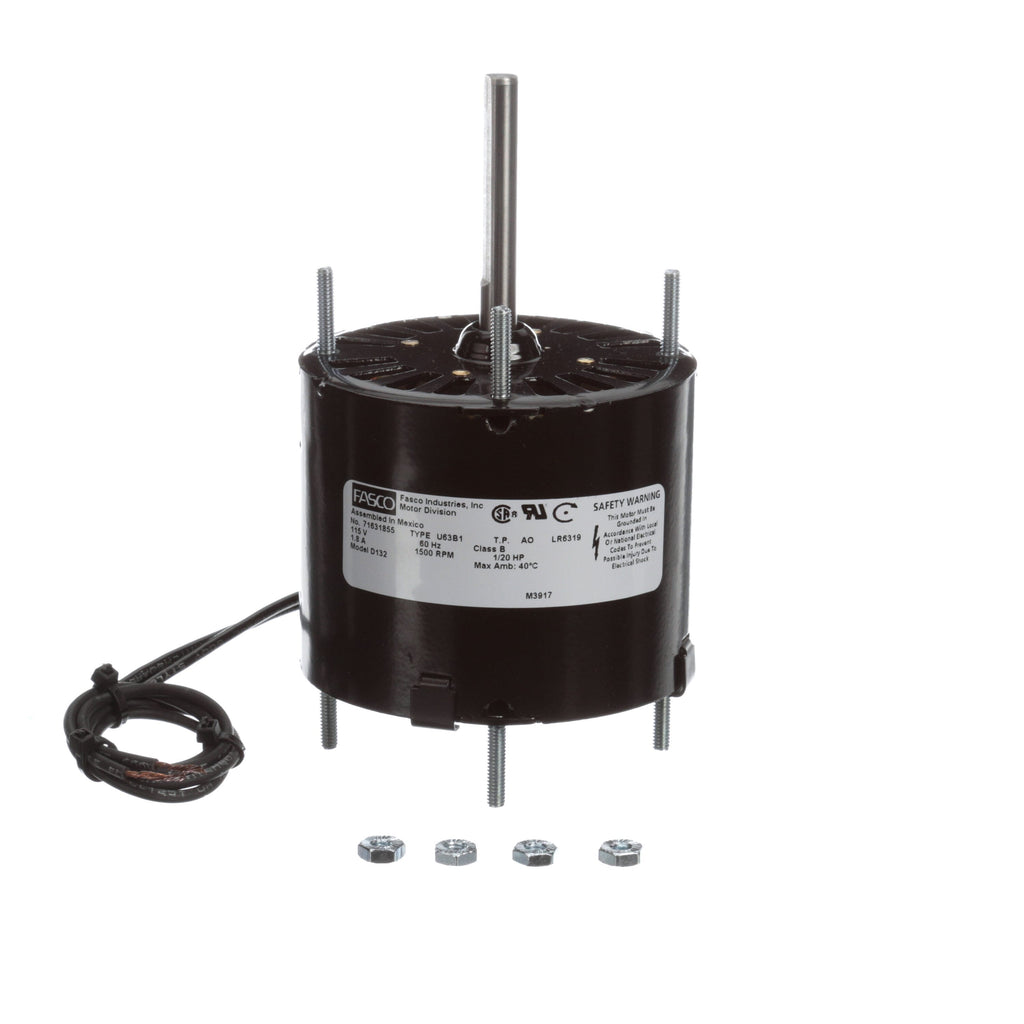

Fasco Direct Drive Motor, 1500 RPM, 1/20 HP, 115V, 3.3" Diameter, Open Air Over

Availability:
In-Stock
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Lead End

$100.00 USD

Title
Buy Now
SKU:
D132
ID:
HM106-1S9-0001

PRODUCT INFO

Applications
Electric wall and ceiling heaters, gas and oil heaters, range hood vents, fans, blowers, etc.

Features
Open ventilated enclosures, to be located in the airstream, thermally protected |Studs: four on 2.84" centers, both ends of motor

SPECIFICATIONS

Nameplate Specifications
UPC815585028536
Output HP1/20 Hp
Frequency60 Hz
Current1.80 A
Service Factor1
DutyAir Over
Frame3.3
Thermal ProtectionThermally Protected
ULRecognized
Output KW0.04 Kw
Voltage115 V
Speed1500 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles4
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length2.55 in
Shaft Extension2.30 in
Starting MethodAcross The Line
RotationClockwise Shaft End
Frame MaterialSteel
Overall Length5.16 in
Shaft Diameter0.313 in
