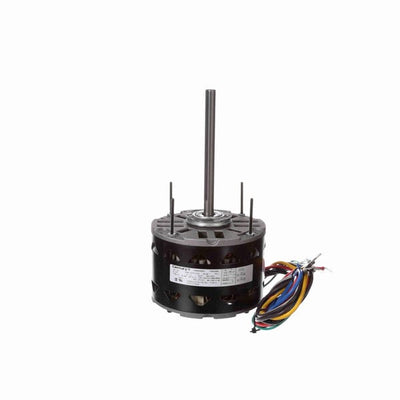

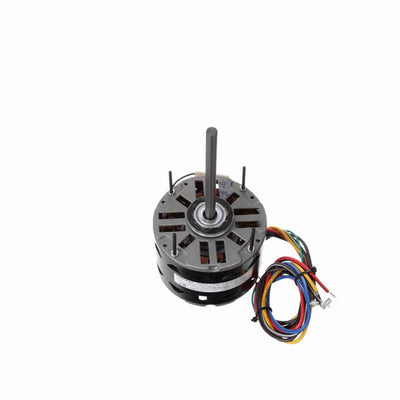

Century Direct Drive Motor, 1075 RPM, 1/4 HP, 277 V, 48 Frame, Open Air Over
- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
- HM106-0050 replaces the following brands and item numbers: Designed as replacements for direct drive furnaces, air conditioners, exhaust fans, etc.
$262.50 USD
PRODUCT INFO
Applications
Designed as replacements for direct drive furnaces, air conditioners, exhaust fans, etc.
Features
Automatic thermal protection. Reversible rotation. Resilient rings included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674010902 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 1.3 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 277 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 50 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Ring/Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 3.25 in |
| Shaft Extension | 6.4 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 10.80 in |
| Shaft Diameter | 0.500 in |
