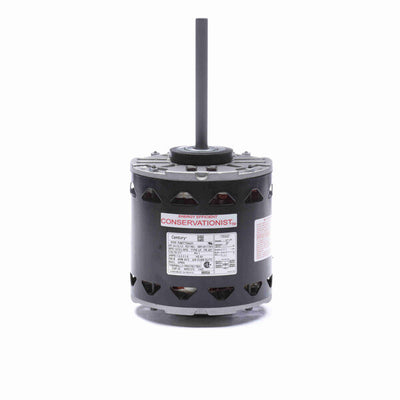

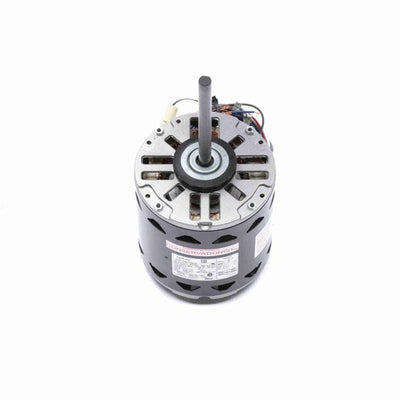

Century Direct Drive Motor, 1075 RPM, 3/4-1/2-1/3 HP, 277 V, 48 Frame, Open Air Over

Availability:
Out-Stock
  • Direct Drive Fan & Blower Motor
  • 5.6" Diameter - 48 Frame
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 36" Leads
  • Resilient Ring Mounting
  • HM106-0047 replaces the following brands and item numbers: Designed as replacements for direct drive furnaces, air conditioners, exhaust fans, etc.

$385.35 USD

Sold Out

SKU:
9605A
ID:
HM106-1S9-0047

PRODUCT INFO

Applications
Designed as replacements for direct drive furnaces, air conditioners, exhaust fans, etc.

Features
Automatic thermal protection. Reversible rotation. Resilient rings included

SPECIFICATIONS

Nameplate Specifications
UPC786674011367
Output HP3/4,1/2,1/3 Hp
Frequency60 Hz
Current3.9,2.2,1.6 A
Service Factor1
DutyAir Over
FrameF48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage277 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Rings
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length
4.88 in
Shaft Extension5.50 in
RotationReversible
Frame MaterialRolled Steel
Overall Length11.49 in
Shaft Diameter0.500 in
