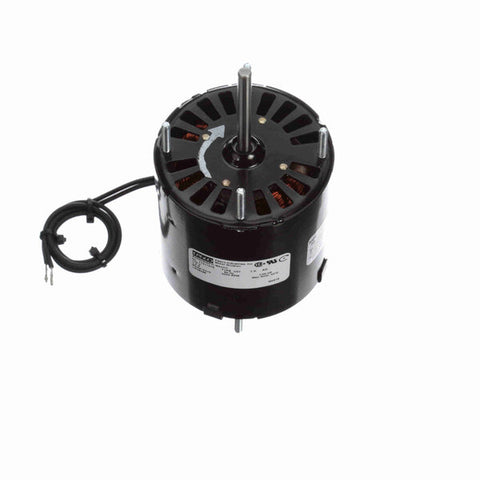

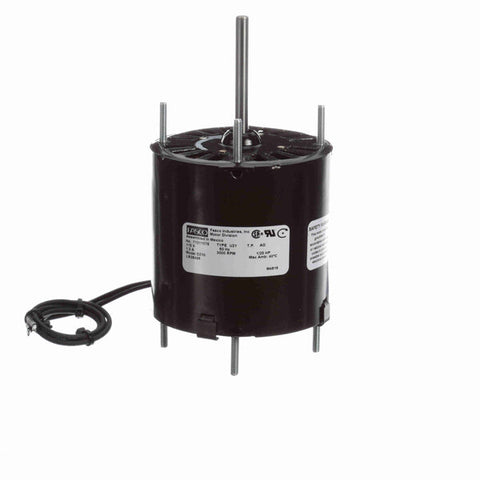

Fasco Direct Drive Motor, 3000 RPM, 1/25 HP, 115 V, 3.3" Diameter, Open Air Over
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End
$155.00 USD
PRODUCT INFO
Applications
For use on such diverse applications as hair dryers, fans, blowers, etc.
Features
60 H. zOpen ventilated enclosure motor to be located in the airstream, thermally protected
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029007 |
| Output HP | 1/25 Hp |
| Frequency | 60 Hz |
| Current | 1.3 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 3000 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.13 in |
| Shaft Extension | 2.50 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Rolled Steel |
| Overall Length | 5.81 in |
| Shaft Diameter | 0.250 in |
