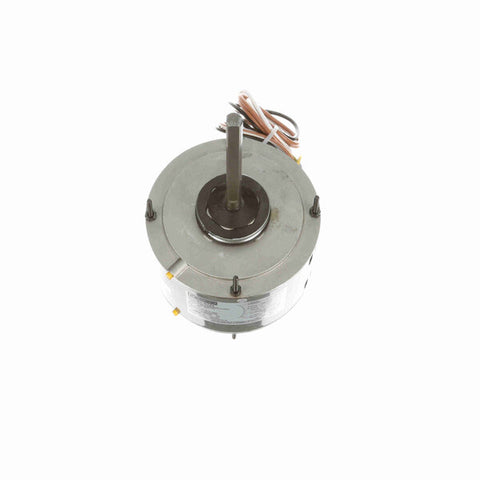

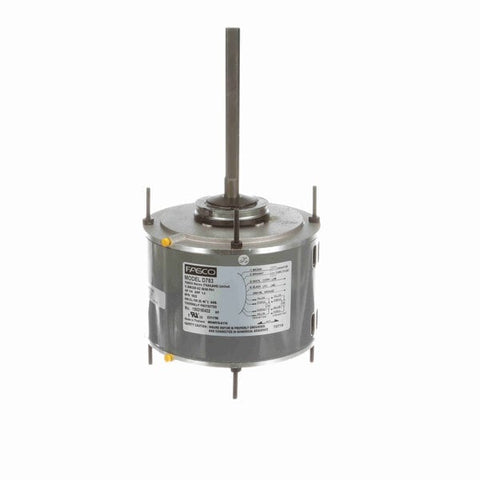

Fasco Direct Drive Motor, 3000 RPM, 1/25 HP, 115 V, 3.3" Diameter, Semi Enclosed
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Enclosed Shaft End End-Frame, Open Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads with .5" Strip
- Extended Studs Shaft End and Lead End, Resilient Mounting Ring Shaft End and Lead End
$233.00 USD
PRODUCT INFO
Applications
Window air conditioners. Fans and blowers
Features
Automatic thermal protection. Electrically reversible rotation. All-angle |Sleeve bearing. Open construction
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508020198 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 1.58 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1625 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 3.45 in |
| Shaft Extension | 5.94 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Shaft Diameter | 0.500 in |
