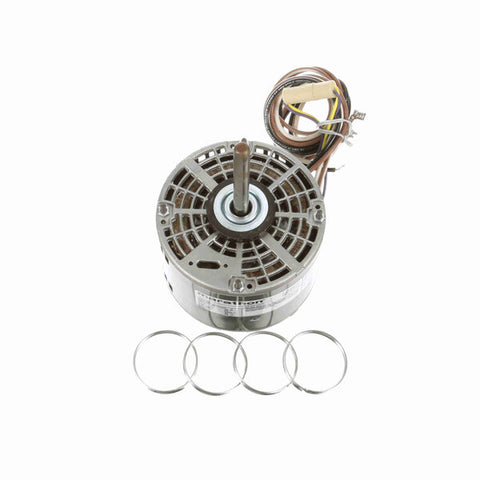

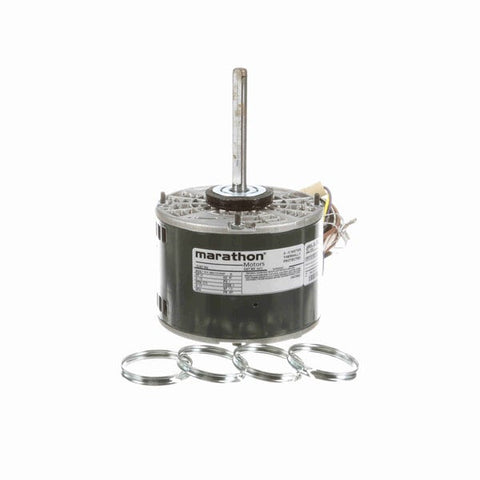

Marathon Direct Drive Motor, 1075 RPM, 1/6 HP, 115 V, 48Y Frame, Open Air Over
- Open frame and brackets
- Heavy gauge steel frame and base
- Shaft with flat, 70°C ambient
- 37” Leads
- Thermal overload protection
- 1/4” terminals on the capacitor leads
- 2 1/4” resilient rings, includes 2 1/2” expanders
- Capacitor not included, see Accessories section
$223.00 USD
PRODUCT INFO
Applications
Single-speed PSC motors designed to replace shaded pole motors for direct drive furnace blowers, air conditioners, blowers, etc.
Features
Automatic thermal protection. Capacitor leads include 1/4" terminals. 2-1/4" diameter resilient rings with expanders for 2-1/2" diameter. Horizontal mount only; not suitable for vertical mounting. Rotation: electrically reversible. Capacitor not included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856038845 |
| Output HP | 1/6 Hp |
| Frequency | 60 Hz |
| Current | 2.9 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 3.50 in |
| Shaft Extension | 4.06 in |
| Rotation | Selective Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 9.00 in |
| Shaft Diameter | 0.500 in |
