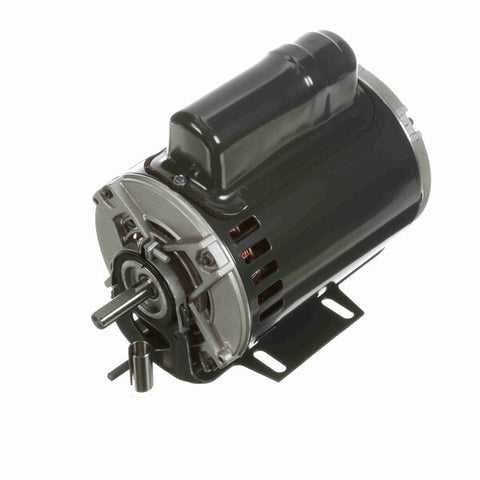

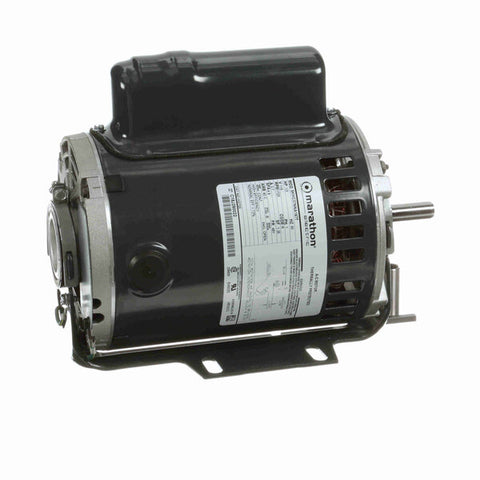

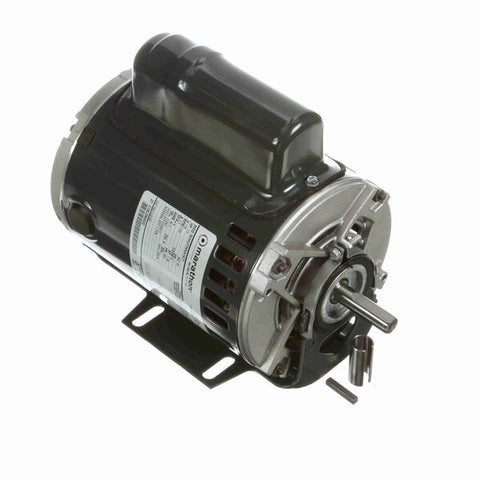

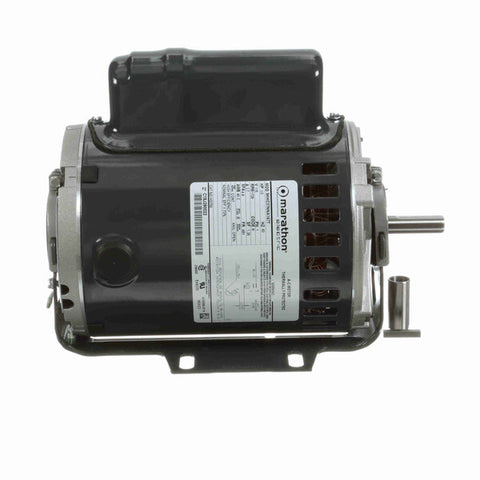

Marathon Direct Drive Motor, 1725 RPM, 1/3 HP, 115 V, 48Y Frame, Open Air Over
- Ball bearings
- Energy saver design
- 5/8" shaft adapter included
- Heavy gauge steel frame and base
- 48Y and 48YZ frame have 48/56 frame mounting holes
- Connected for CCW rotation facing opposite shaft end. Reversible by reconnection of leads
$485.00 USD
PRODUCT INFO
Features
Automatic reset overload protection. 2-1/2" resilient rings. All-angle bearings. 1/2"–5/8" diameter shaft adapter included. Continuous duty, 40°C ambient. CCW/CW electrically reversible rotation. Fig. A slotted frame, base included: fits 48 and 56 frame mount. Fig. B length adjustable, base not included: 1-1/2" splined hub (OSE) for adjustable mounting
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856040213 |
| Output HP | 1/3 |
| Frequency | 60 Hz |
| Current | 3.7 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 48Y |
| Thermal Protection | Auto |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1725 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Split Start Capacitor Run |
| Poles | 4 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Ball |
| Frame Length | 6.62 in |
| Shaft Extension | 1.5 in |
| Rotation | Clockwise/Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 10.39 in |
| Shaft Diameter | 0.500 in |
