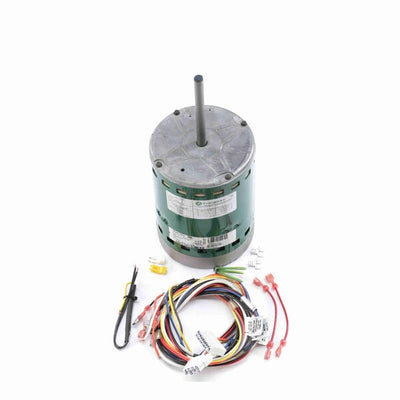

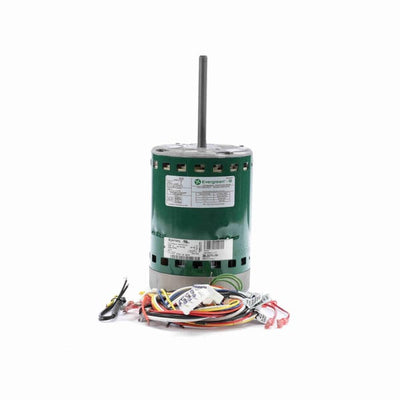

Genteq Fan & Blower Motor, 1075 RPM, 1 HP, 115/230 V, 48 Frame, Semi Enclosed
- Evergreen IM - Retrofit Blower Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads
- Belly Band
$370.00 USD
PRODUCT INFO
Applications
For use in ALL air handler, heat pump, electric and fossil fuel furnace applications
Features
Constant fan (600 RPM) operation optimizes the efficiency of IAQ accessories and reduces air stratification in the home. Ball bearing. 80% High efficiency ECM technology. RPM range: 600–1075. Quiet operation. Five pre-programmed speed-torque profiles. Correct direction of rotation automatically determined by patented auto-rotation capability
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585020554 |
| Output HP | 1 Hp |
| Frequency | 60 Hz |
| Current | 11.0/6.7 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48 |
| Thermal Protection | No |
| UL | No |
| Voltage | 115/230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Electronically Commutated Motor |
| Poles | 12 |
| Mounting | Round |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 6.32 in |
| Shaft Extension | 4.92 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.76 in |
| Shaft Diameter | 0.500 in |
