Home
HVAC
HVAC Motors
Direct Drive ECM Motors

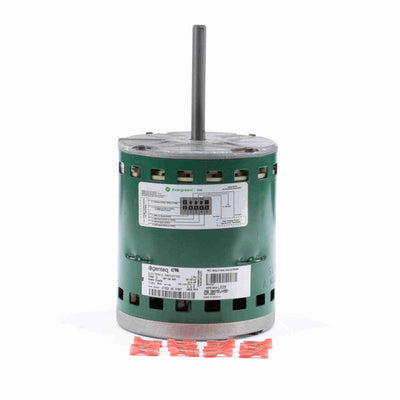

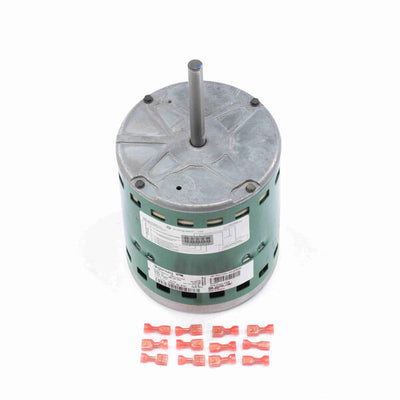

Genteq Fan & Blower Motor, 1075 RPM, 3/4 HP, 208-230/277 V, 48 Frame, Open Air Over
Genteq Fan & Blower Motor, 1075 RPM, 3/4 HP, 208-230/277 V, 48 Frame, Open Air Over
Availability:
Out-Stock
- Evergreen CM - ECM Replacment Commercial Air Handler Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Open Air Over
- Class B Insulation, 45C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads
- Belly Band
$467.00 USD
PRODUCT INFO
Applications
VAV boxes, packaged heat pumps and direct drive belly band blower motors
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585023876 |
| Output HP | 3/4 Hp |
| Frequency | 60 Hz |
| Current | 6.0/4.9 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | No |
| UL | Recognized |
| Voltage | 208-230/277 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Electronically Commutated Motor |
| Poles | 12 |
| Mounting | Round |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 5.57 in |
| Shaft Extension | 3.92 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 10.42 in |
| Shaft Diameter | 0.500 in |
