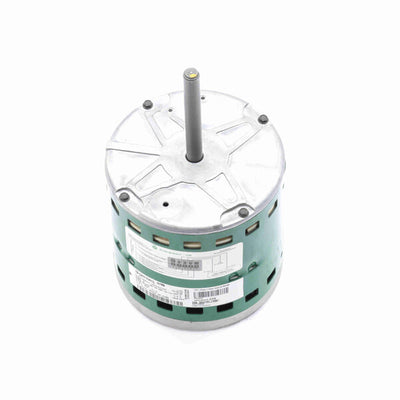

Genteq Fan & Blower Motor, 1075 RPM, 1/2 HP, 208-230/277 V, 48 Frame, Open Air Over

Availability:
In-Stock
  • Evergreen CM - ECM Replacment Commercial Air Handler Motor
  • 5.6" Diameter - 48 Frame
  • Electronically Commutated (ECM)
  • Electronically Protected
  • Open Air Over
  • Class B Insulation, 55°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 42" Leads
  • Belly Band

$447.00 USD

Title
Buy Now
SKU:
6705
ID:
HM108-1S9-0010

PRODUCT INFO

Applications
VAV boxes, packaged heat pumps and direct drive belly band blower motors

SPECIFICATIONS

Nameplate Specifications
UPC815585023869
Output HP1/2 Hp
Frequency60 Hz
Current4.1/3.6 A
Service Factor1
DutyContinuous Air Over
Frame48
Thermal ProtectionNo
ULRecognized
Voltage208-230/277 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeElectronically Commutated Motor
Poles12
MountingRound
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length4.82 in
Shaft Extension3.92 in
RotationReversible
Frame MaterialRolled Steel
Overall Length9.67 in
Shaft Diameter0.500 in
