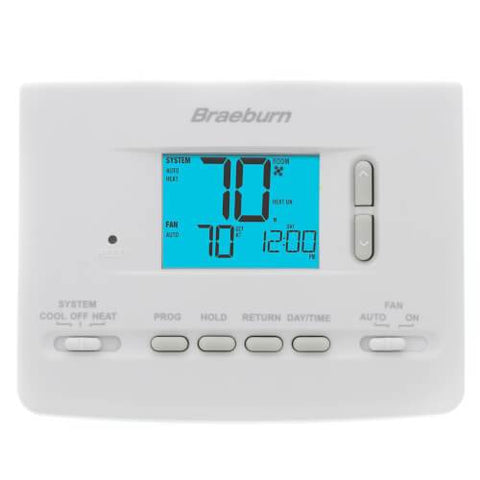

Braeburn Builder Model 2020NC Programmable Thermostat (1 Heat/1 Cool)
- Programming: 7 Day, 5-2 Day, or Non-Programmable
- Warranty: 5 Year
$45.27 USD
SKU:
BR2020NC
ID:
PH501-0011
Categories:
PRODUCT INFO
Features
- 5-2 Day Programming
- Large 2 Sq. In. Display with Bright Blue Backlight
- Adjustable Temperature Limits
- Hardwire or Battery Powered
- Permanent Memory Retains Settings
- Filter Check Monitor
- Adjustable Temperature Differential
- Adaptive Recovery Mode (ARM)
- Meets Energy Aware Guidelines
- ESD Guard Electronic Circuitry
- Compressor Short Cycle Protection
- Temporary Program Override
- Programmable Extended Hold Mode
- Front Access Reset Button
- F° / C° Switch
- English / Spanish Packaging and Instruction Card with FREE Contractor Branding
- 5 Year Warranty
Braeburn 2020NC Replaces*
- Honeywell* TH2110, TH4110
- Emerson* 1E78-151, 1F78-151, 1F80-0224, 1F80-0261
*Verify specific application requirements. All trademarks are the property of their respective owners.
SPECIFICATIONS
| Dimensions: | 3.62” x 4.72” x 1.38” | |
| Electric Rating: | 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 3 amp total maximum load (all terminals) | |
| AC Power: | 18-30 Volt AC | |
| DC Power: | 3.0 Volts DC (2 “AA” Alkaline batteries included) | |
| Compatibility: | Single stage gas, oil or electric systems Single stage heat pump systems 250mv – 750mv millivolt heating systems | |
| Control Range: | 45° to 90° F (7° to 32° C) | |
| Display Range: | 40° to 99° F (5° to 37° C) | |
| Accuracy: | +/- 1° F (+/- .5° C) | |
| Temperature Differential: | 5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) | |
| Storage Temperature: | 14° to 140° F (-10° to 60° C) | |
| Operating Humidity: | 5% to 95% Relative Humidity | |

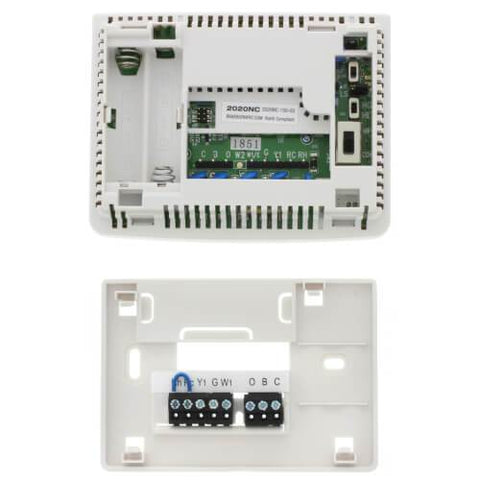

| Terminations: | Rc, Rh, O, B, Y1, W1, G, C |
