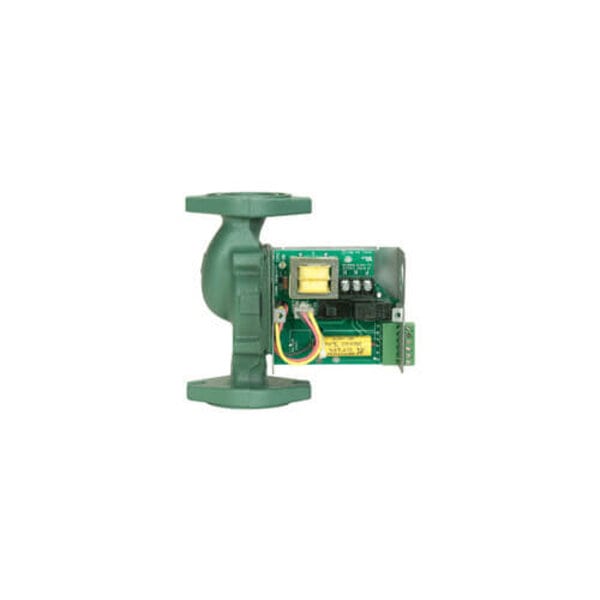

Taco 006-ZF7-1IFC Cast Iron Priority Zoning Circulator w/ Integral Flow Check, 1/40 HP
Features
Typical Applications
Casing O-Ring: 007-003RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 005-019RP
Valve Assembly Trans/Relay: 006-047RP
- Universal Thermostat Compatibility, Thermostat Ready
- Can be used in conjunction with other circulators or zone valves
- Available in a full range of sizes from 003-0014
- 00 Reliability
- Snap-In PC Board
- Low and High Voltage Strips
- Removable low-voltage terminal strip simplifies wiring installation
- LED Power Light
- UL and CSA Listed
- 100% Factory Tested
- Made in USA
Typical Applications
- Indirect Hot Water Heaters
- Adding Zones
- Zoning with Circulators
- Prioritizing Under-Sized Zones
Casing O-Ring: 007-003RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 005-019RP
Valve Assembly Trans/Relay: 006-047RP
$539.00 USD
SKU:
006-ZF7-1IFC
ID:
TC200-2S9-0384
Categories:
SPECIFICATIONS
| Zoning Circulator | Cast Iron | |
| Voltage | 115V | |
| Max Pressure (PSI) | 125 | |
| Horse Power | 1/40 | |
| Flow Range (GPM) | 0-9 | |
| Max Head (Ft) | 9 | |
| Hertz | 60 | |
| RPM | 3250 | |
| Connection Type | Flanged x Flanged |
| Application | Heating | |
| Amperage | 0.52 | |
| Type | Pump | |
| Connection Size | 3/4" 1" 1-1/4" 1-1/2" | |
| Max Flow (GPM) | 9 | |
| Head Range (ft.) | 0-9 | |
| Phase | 1 | |
| Temperature Range (F) | 40°F - 220°F |
