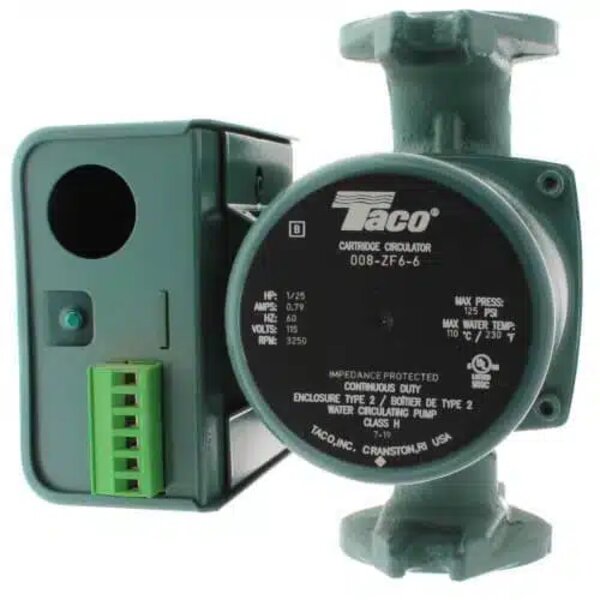

Taco 008-ZF6-6 Cast Iron Priority Zoning Circulator, 1/25 HP

Availability:
In-Stock
Features
  • Universal Thermostat Compatibility, Thermostat Ready
  • Can be used in conjunction with other circulators or zone valves
  • Available in a full range of sizes from 003-0014
  • 00 Reliability
  • Snap-In PC Board
  • Low and High Voltage Strips
  • Removable low-voltage terminal strip simplifies wiring installation
  • LED Power Light
  • UL and CSA Listed
  • 100% Factory Tested
  • Made in USA
Typical Applications
  • Indirect Hot Water Heaters
  • Adding Zones
  • Zoning with Circulators
  • Prioritizing Under-Sized Zones
Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 008-044RP

$585.00 USD

Title
Buy Now
SKU:
008-ZF6-6
ID:
TC200-2S9-0400

SPECIFICATIONS


Material
Cast Iron

Application
Heating

Max Pressure (PSI)
125

Horse Power
1/25




Max Flow (GPM)
14

Head Range (ft.)
0-16

Hertz
60

RPM
3250

Connection Type
Flanged x Flanged



Amperage
0.79

Voltage
115V

Type
Pump

Connection Size
1"
3/4"
1-1/4"
1-1/2"

Flow Range (GPM)
0-14

Max Head (Ft)
16

Phase
1

Temperature Range (F)
40°F to 230°F
