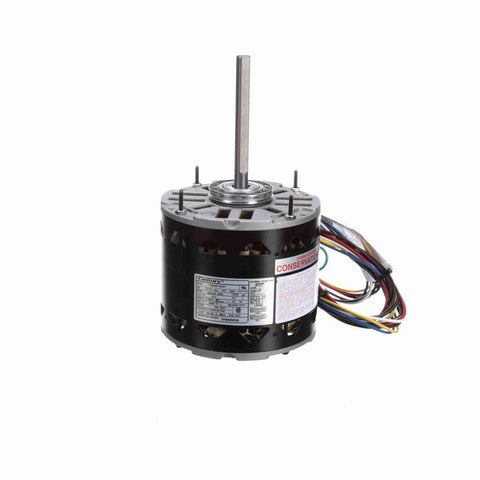

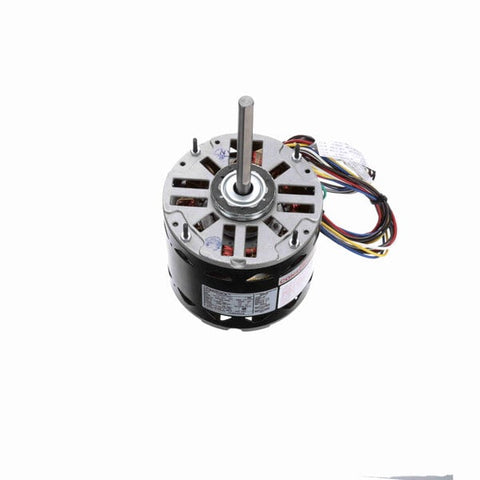

Century Direct Drive Motor, 1075 RPM, 1/2-1/6 HP, 277 V, 48 Frame, Open Air Over
- MasterFit Pro - Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 or 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 38" Leads with Quick Connect Terminals
- Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell
$257.25 USD
PRODUCT INFO
Applications
277V light commercial VAV blower and furnace replacement motors
Features
Automatic thermal protection. All purpose capacitor included. Extended thru bolts. Rheem mounting holes in shell. Resilient rings
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674060600 |
| Output HP | 1/2-1/6 Hp |
| Frequency | 60 Hz |
| Current | 3.3 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 277 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Ring/Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 4.25 in |
| Shaft Extension | 5.0 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 10.36 in |
| Shaft Diameter | 0.500 in |
