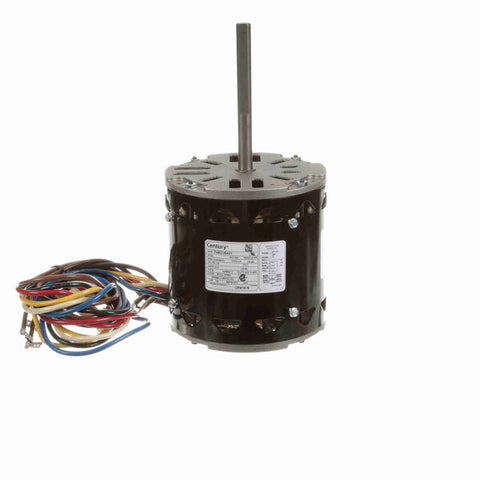

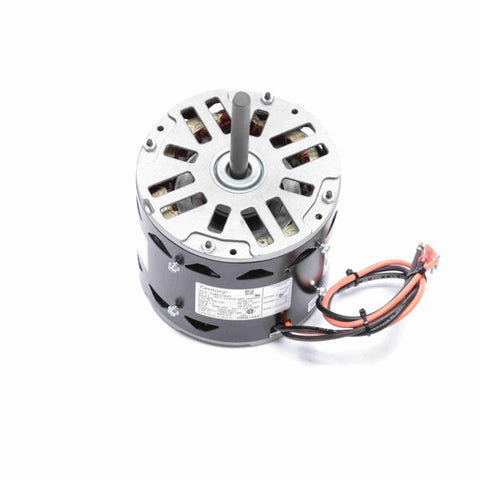

Century Direct Drive Motor, 1075 RPM, 3/4 HP, 115 V, 48 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 35" Power Leads with Flag Terminals, 28" Capacitor Leads with Flag Terminals
- Mounting Holes in Shell
$349.65 USD
SPECIFICATIONS
Nameplate Specifications | |
UPC | 786674028228 |
Output HP | 3/4 Hp |
Frequency | 60 Hz |
Current | 10.5 A |
Service Factor | 1 |
Duty | Air Over |
Frame | 48Y |
Thermal Protection | Automatic |
UL | Recognized |
Voltage | 115 V |
Speed | 1075 rpm |
Phase | 1 |
Insulation Class | B |
Enclosure | Open Air Over |
Ambient Temperature | 40 °C |
CSA | Y |
Technical Specifications | |
Electrical Type | Permanent Split Capacitor |
Poles | 6 |
Mounting | Round Belly Band |
Opp Drive End Bearing | Ball |
Shaft Type | Flat |
Frame Length | 5.13 in |
Shaft Extension | 5.0 in |
Rotation | Reversible |
Frame Material | Rolled Steel |
Overall Length | 10.61 in |
Shaft Diameter | 0.500 in |
