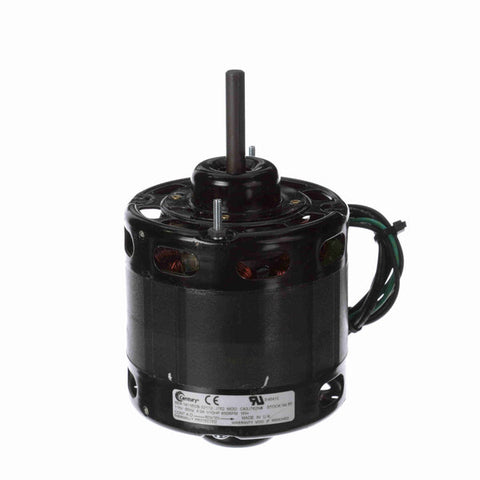

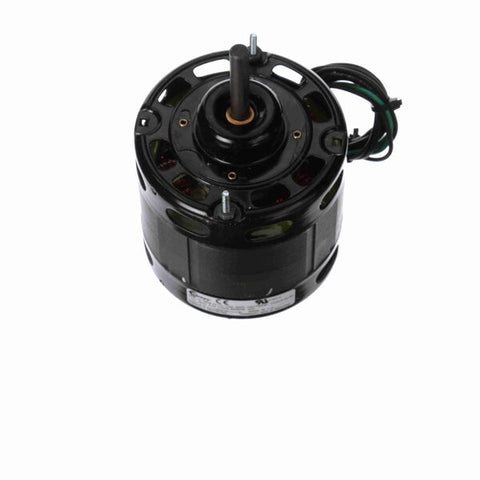

Century Direct Drive Motor, 850 RPM, 1/10 HP, 115 V, 4.4" Diameter, Open Air Over
- Heating - Ventilating - Welding Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
$346.50 USD
PRODUCT INFO
Features
All-angle sleeve bearings, automatic thermal overload protectionю Open design, shaded pole, no mounting rings
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674006080 |
| Output HP | 1/10 Hp |
| Frequency | 60 Hz |
| Current | 4.0 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 4.4 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 850 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 3/8 X 2 1/2 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | N/A |
| Overall Length | 6.54 in |
| Shaft Diameter | 0.375 in |
