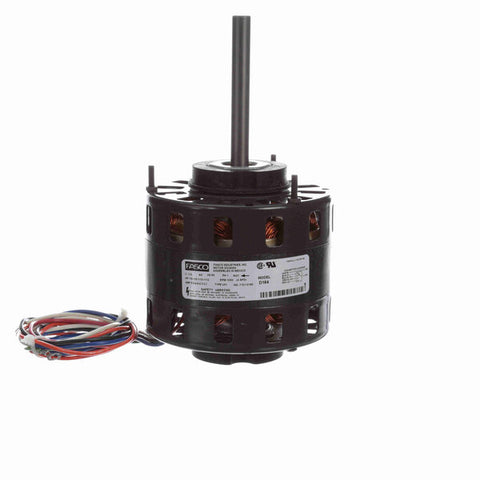

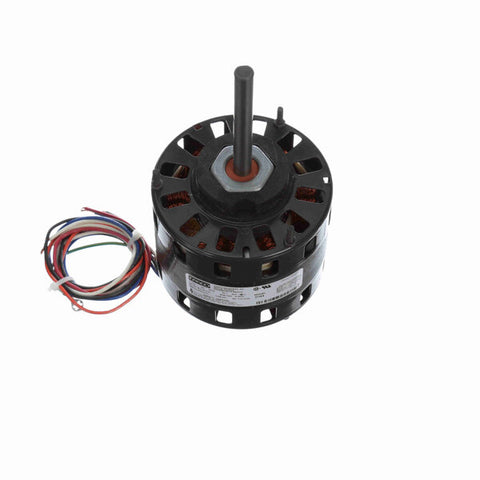

Fasco Direct Drive Motor, 1050 RPM, 1/6-1/8-1/10-1/2 HP, 115 V, 42 Frame, Open Air Over
- Direct Drive Blower Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26.5" Leads
- Resilient Ring Mounting, Extended Studs Shaft End, Belly Band
$181.00 USD
PRODUCT INFO
Applications
4-speed motor designed for use on central heating and direct drive blowers |For use on Janitrol, Carrier, Day & Night and Westinghouse
Features
Automatic thermal protection |Can be stud or base mounted |Shaft is 1/2" diameter x 4-1/2" long with 2-1/2" flat |Rotation: CWSE
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028727 |
| Output HP | 1/6 - 1/8 - 1/10 - 1/2 Hp |
| Frequency | 60 Hz |
| Current | 6.5/4.8/4.3/3.7 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 4.50 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Na |
| Overall Length | 9.09 in |
| Shaft Diameter | 0.500 in |
