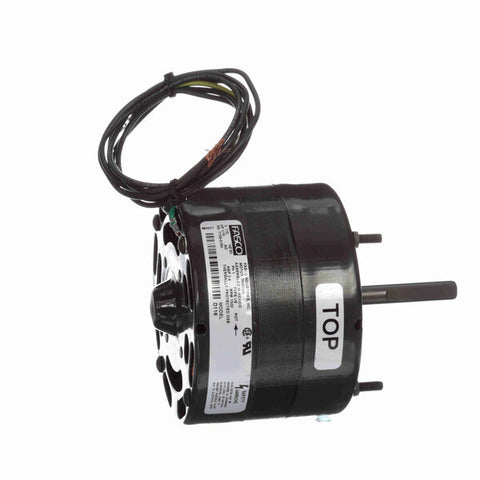

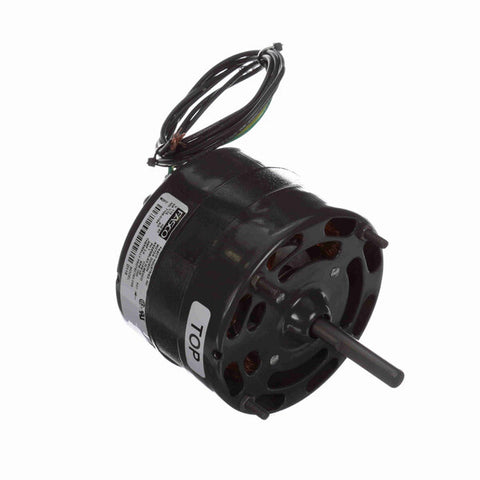

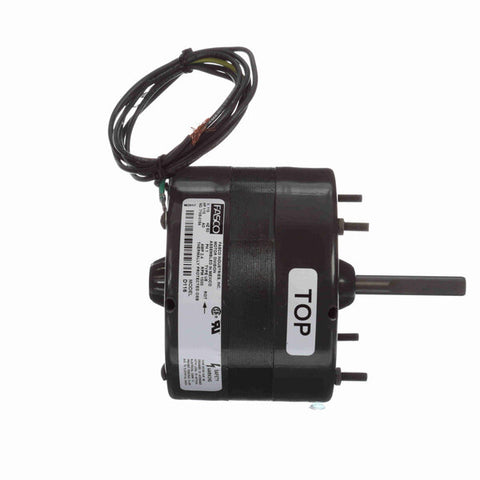

Fasco Direct Drive Motor, 1500 RPM, 1/15 HP, 115 V, 4.4" Diameter, Open Air Over
- General Purpose Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End
$232.00 USD
PRODUCT INFO
Applications
Replacements for motors used on roof ventilators, may also be used on fan and blower applications where the motor is located in the air system
Features
Thermally protected, 60 Hz. Shafts: flatted Studs: four studs on 3.89" centers, shaft end, 1/2" long all motors
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508022215 |
| Output HP | 1/15 Hp |
| Frequency | 60 Hz |
| Current | 2.4 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 4.4 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Output KW | 0.05 Kw |
| Voltage | 115 V |
| Speed | 1500 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 2.30 in |
| Starting Method | Across The Line |
| Rotation | Clockwise Shaft End |
| Frame Material | Na |
| Overall Length | 5.97 in |
| Shaft Diameter | 0.375 in |
